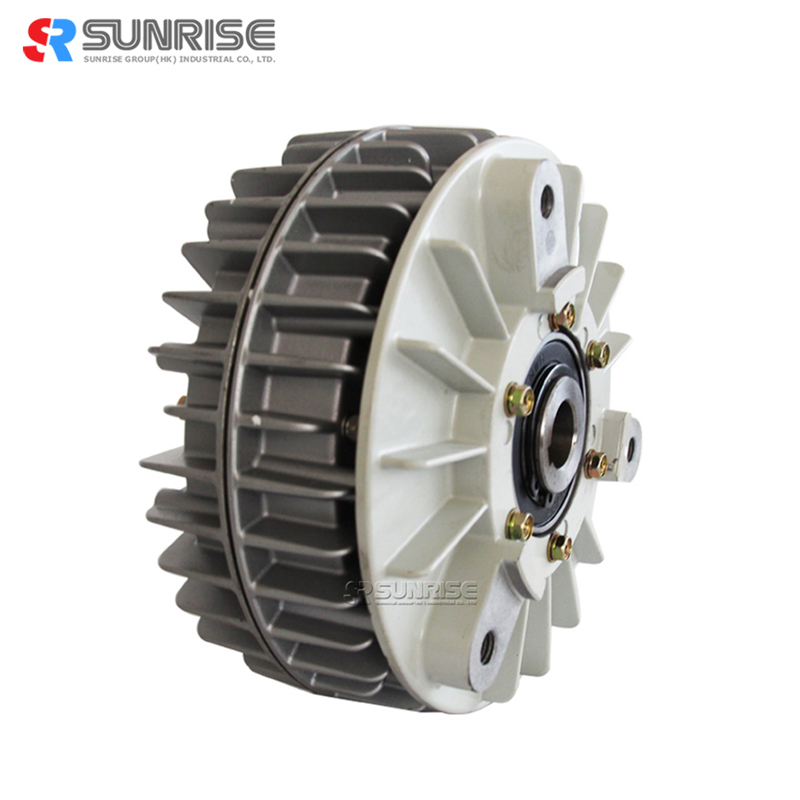

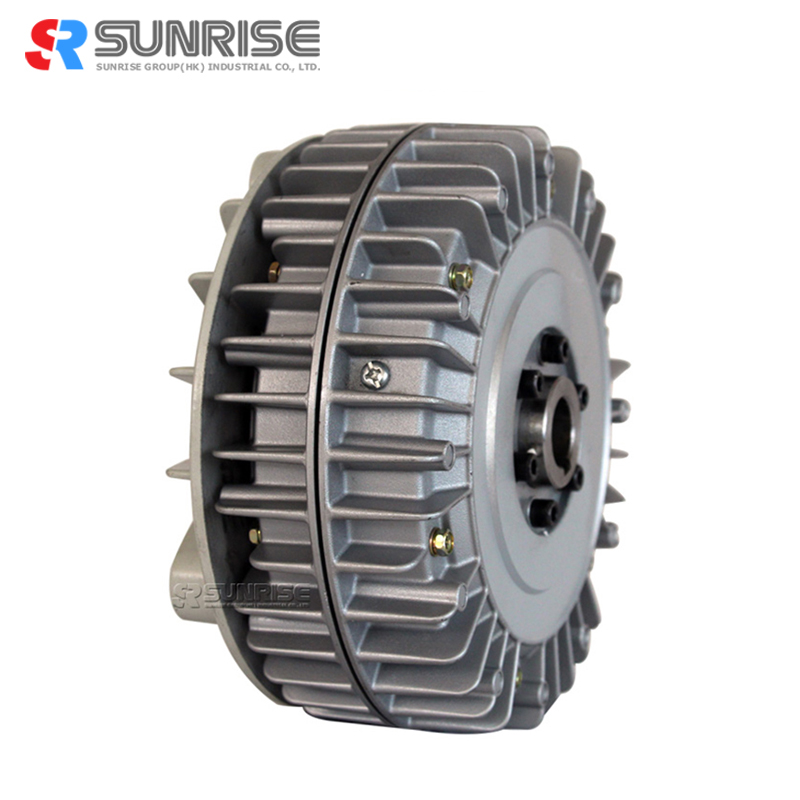

Alibaba Hot Sale SUNRISE Magnetic Powder Brake With Low Price

Magnetic particle clutch brake features:

1) Excitation current and transmitting torque are almost in proportion, also transmitting torque is controlled with wide ranges.

2) Regardless of slipped rmp, torque is excellently transmitted.

3) Torque by residual flux is very little and stopping stability is excellent.

4) It can operate with slipping state, for large capacity cooling with heat.

5) Take short repair time as it is dry-type, so can use it for long time without any adjustment.

6) It is friction clutch of based on the powder.#magneticpowderbrake

Magnetic powder clutch brake operation principle:

When no current flows in the magnetic coil, powder is being attached to input drum side by centrifugal force as separate input drum and output drum. So the torque is not transmitted. If coil is excited by electric current, magnetic flux is generated, and then torque is transmitted by the friction between powder and working side. #magneticpowderbrake

Function: Printing Machine Magnetic Clutch Powder Brake for tension controller POB series

Brand: Sunrise Group/ None

Item No.: POB-006, POB-015, POB-025 ...

Material: Steel ...

Usage: Maintain, connecton, disconnection, buffer start, tension control, torque limit overload protection etc.

Basic Parameter:

Rated torque[kgf-m] (N-m): 0.6(6)~20(200)

Capacity (DC24V) at 75℃

Current(A): 0.3~1.9

Power(W): 7.2~45.6

No. of hours set (S): 0.10~0.60

Weight(kg): 2.7~53

Maximum speed (r/min): 1800

 Weight of powder (g): 14~255

Price: US $150/pc

MOQ: 1pc

Payment term: T/T, Western union

Delivery term: EXW

Validity: 10 days

Lead time: 5-7 days

Website: sunrisescn.com
