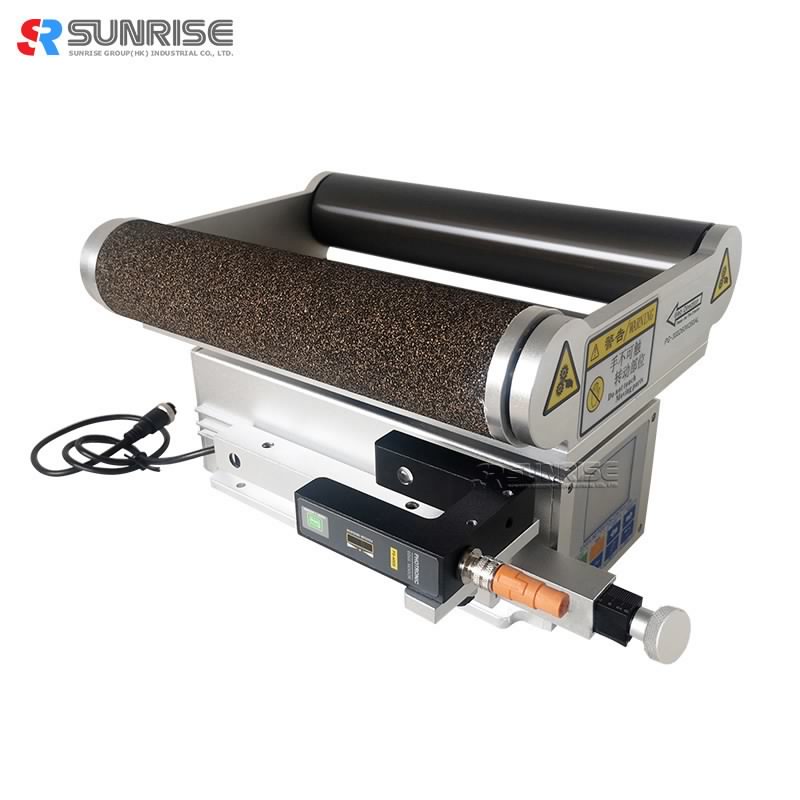

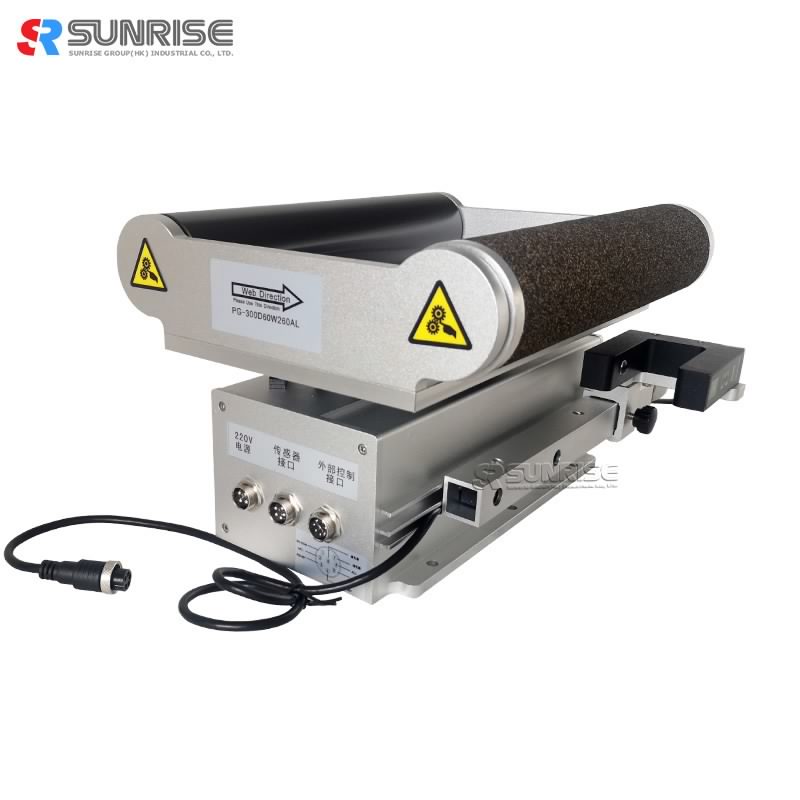

Center Position Control Mask Machine use Electric Web Guide Control System

All-In-One Web Guide Control System  PG Series Outline:

Our Newly developed all-in-one web guide controller is applied to accurate correct the narrow range of materials. Especially for label printing, packaging and non-woven industries. All-in-one web guiding controller is with compact design, easy installation and saving space. Controller, driver and detector are integrated which help user to increase high efficiency during installation and debugging.

Function: All-In-One Web Guide Control System for printing machine

Brand: Sunrise Group/ None

Item NO.: PG-200; PG-280; PG-350 ...

Material: Steel, plastic ...

Powder Input: AC220V/80W

Roller diameter: 50~60mm/ custom made

Roller length: 200~600mm/ custom made

Roller width: 230~310mm/ custom made

Max. driving speed: 40mm/s

Max. tension: 300~500N

Environment temperature: -10~60℃, below RH90%

Web guide range: ±17 degree

Roller surface treatment: cork leather, rubber, anodized

Price: US $630-$1310/set

MOQ: 1pc/1set

Payment term: T/T, Western union

Delivery term: EXW

Validity: 10 days

Lead time: 7-15 days

Website: sunrisescn.com
