New High Grade HCCD Sensor for Web Guide Control System

All-in-one web guide controller is applied to accurate correct the narrow range of materials. Especially for label printing, packaging and non-woven industries. All-in-one web guiding controller is with compact design, easy installation and saving space. Controller, driver and detector are integrated which help user to increase high efficiency during installation and debugging.

Features:

1. Brushless DC servo motor driving, maintenance free;

2. Accuracy ball screw bar and accuracy positioning;


3. With large guiding travel;

4. Roller length and width can be custom made;

5. Roller surface treatment can be anodized, rubber and cork leather;

6. Manual or air fixture of the cutting station is optional.

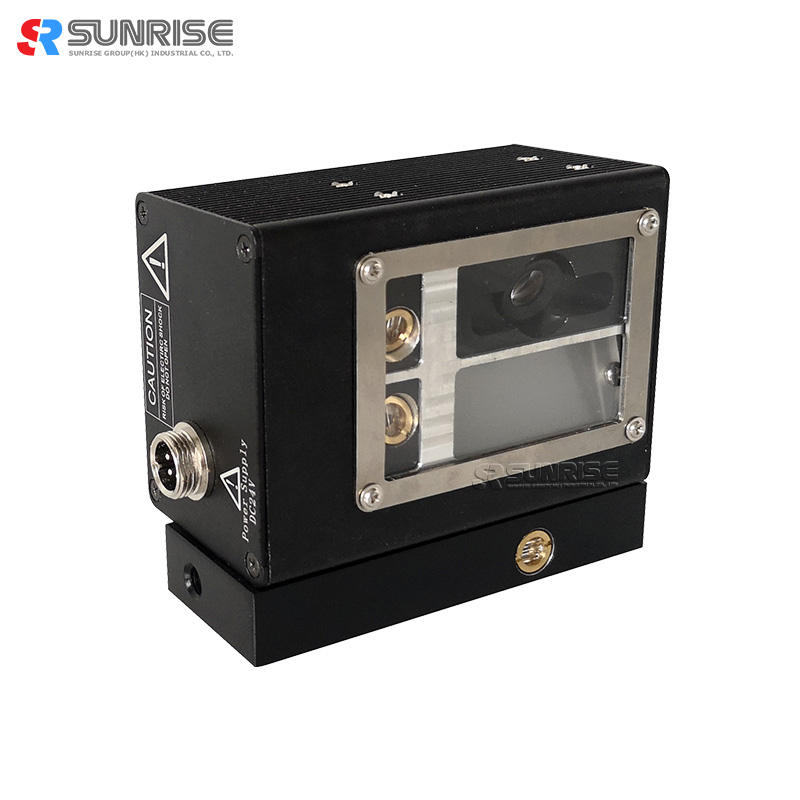

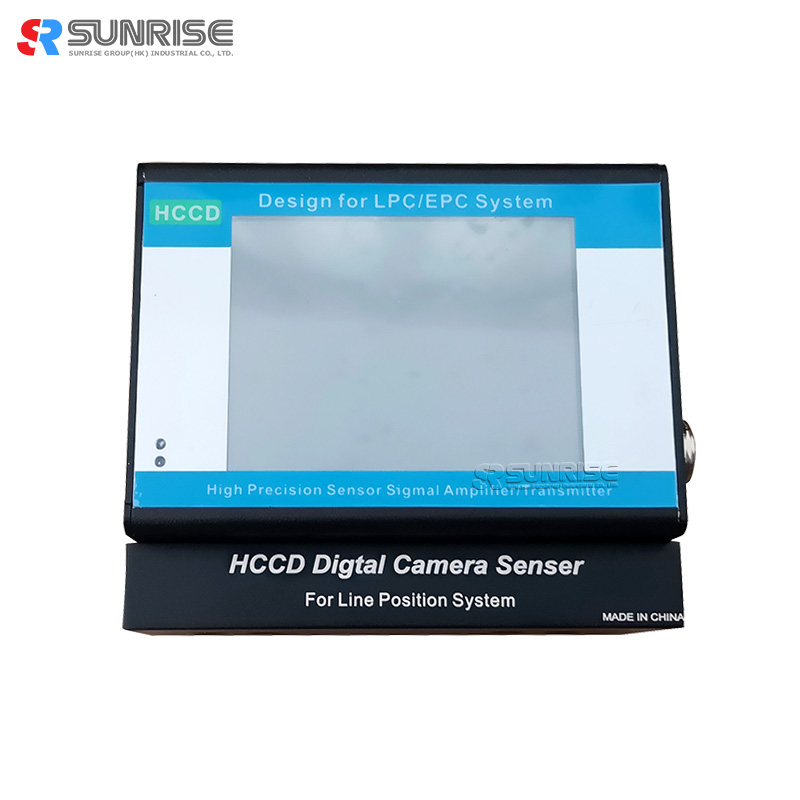

HCCD sensor is a color linear camera, which can track material edges, contrast edges, lines, patterns and so on. Because the materials to be tracked are different, we need to tell the sensor the target to be tracked, which requires calibration of the target to be tracked.

Power input: AC220V/ 80W

Roller diameter: 50mm/ custom made

Roller length: 200mm/ custom made

Roller width: 230mm/ custom made

Max. driving speed

Emvironment temperature: -10-60℃/ below RH90%
