Powder Brake Application Automatic Tension Controller STC-858A

Keywords :

Automatic Tension Controller STC-858A / Powder Brake Automatic Tension Controller / Automatic Tension Controller


  • Hits : 74
  • Company : Dongguan Sunrise Precision Electromechanical Technology Co., Ltd.
  • Telephone : +86 15820882236
Contact Us

Product Details

Contact Us

Five Advantages Of Products

  • Use the crimp-style terminals. Dimensions shown in the right figure.
  • Apply a torque of 0.5 to 0.8 Nm to each terminal, and carefully tighten each terminal.
  • Use the shielded cables for the analog input/output line signal and the winding roll pulse input line.
  • Do not insert both the input/output cable and the power cable into the same duct. Do not bind these cables together.
  • Generally, set the cable length to 10 m or less to protect the controller from noises.

Product Details

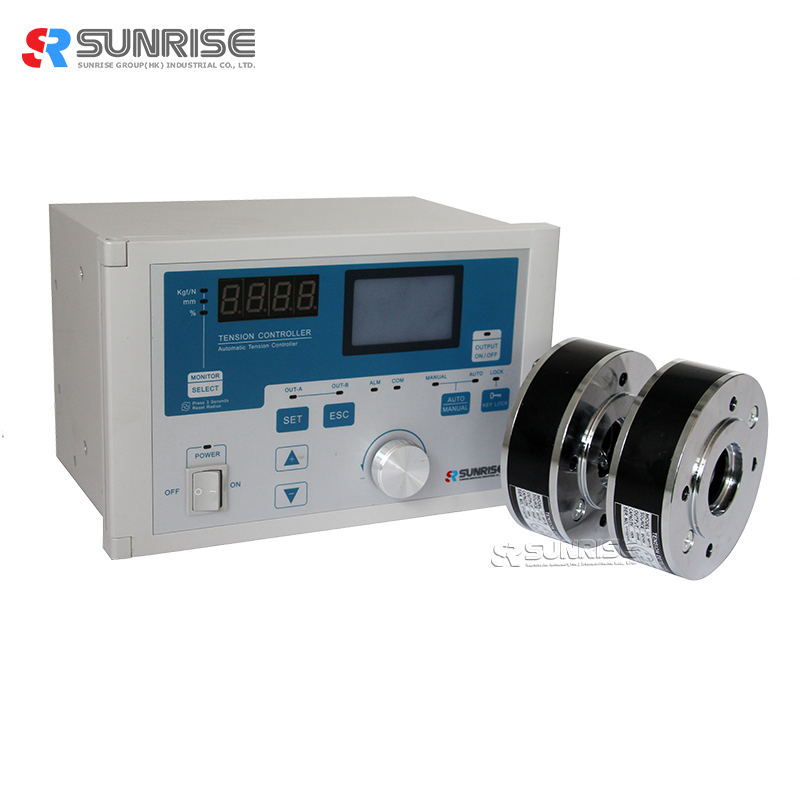

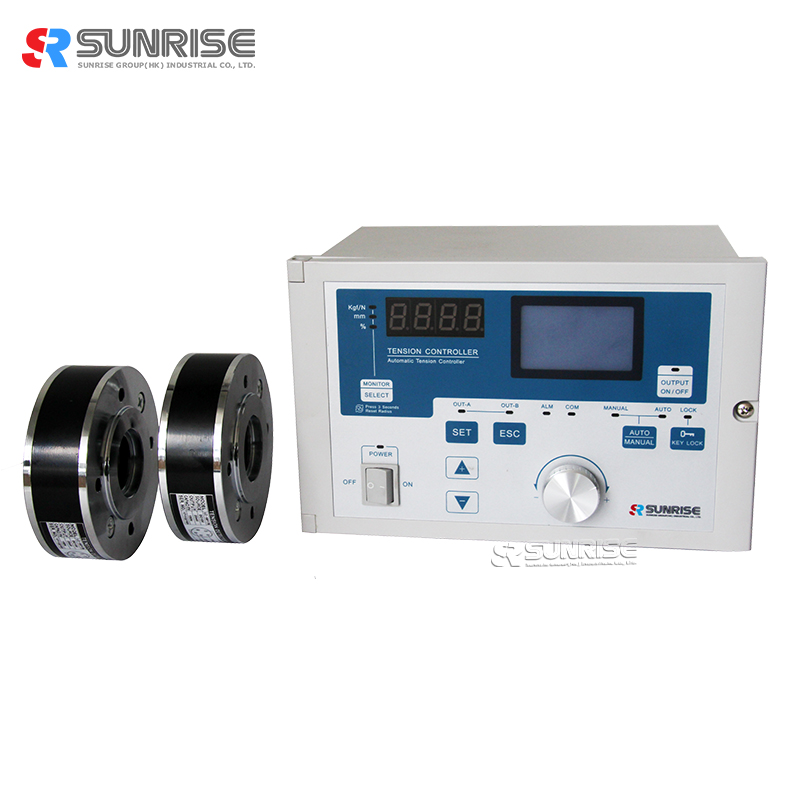

Powder Brake Application Automatic Tension Controller STC-858A


Tension controller features:



(1) The menu function enables storage and reading of 4 types of operation data.

(2) The optional memory cassette enables reading of operation data and writing of data in the other STC-858A tension controller.

(3) The controller has a weak excitation function for the powder clutch/brake. This function will improve the torque rising operation in low-speed operation mode or during the initial start-up of machine.

(4) The controller automatically judges the polarity of the detectorsignal, therefore, wiring is performed with ignoring the specification (compression or tension).

(5) The dot matrix type liquid crystal display is adopted for this controller, it has the capability of displaying Chinese characters.


Basic Parameter:

Working condition:

Ambient temperature: 0~40 °C

Environment humidity: 35~85% RH (no frost)

Non-corrosiveness, no flammabel gas, no conductive dust, dust free

Vibration: 10~50Hz 0.55mm (Max 4.9m/s2)

Grounding: D type grounding (Fordid to connect with strong electic wires together

Weight: Approx 3.5kg


Working condition:

Ambient temperature: 0~40℃

Environment humidity: 35~85% RH (no frost)

Non-corrosiveness, no flammable gas, no conductive dusr, dust free

Vibration: 10~50 Hz 0.55mm (Max. 4.9m/S²)

Groundingz: D type grounding (Forbid to connect with strong electric wires together)

Weight: Approx. 3.5kg

Price: $320/pc

MOQ: 1pc

Payment term: T/T, Western union

Delivery term: EXW

Validity: 10 days

Lead time: 3-7 days

Website: sunrisescn.com
