Products
Direct manufacturer of air clutch and brake unit, pneumatic disc brake pneumatic clutch NAC series
Five Advantages Of Products
- air clutch and brake unit with direct factory wholesale
- high quality and fast delivery for pnematic brake and clutch
- china air clutch manufacture wholesale for printing machine
- machine fittings air clutch NAC series pneumatic brake
- NAC air clutch for machine fittings wholesale
Product Details

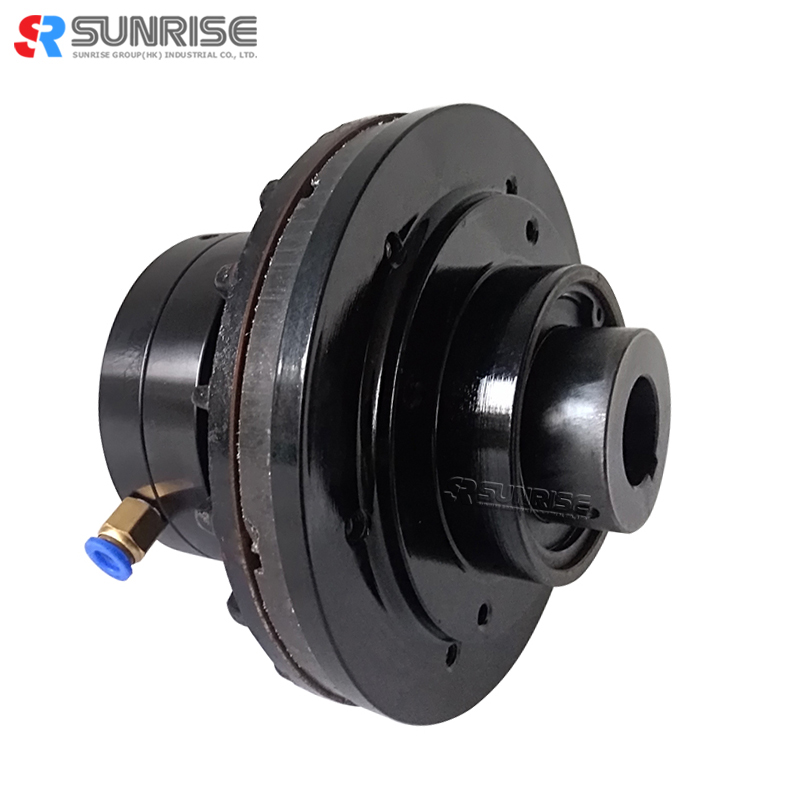

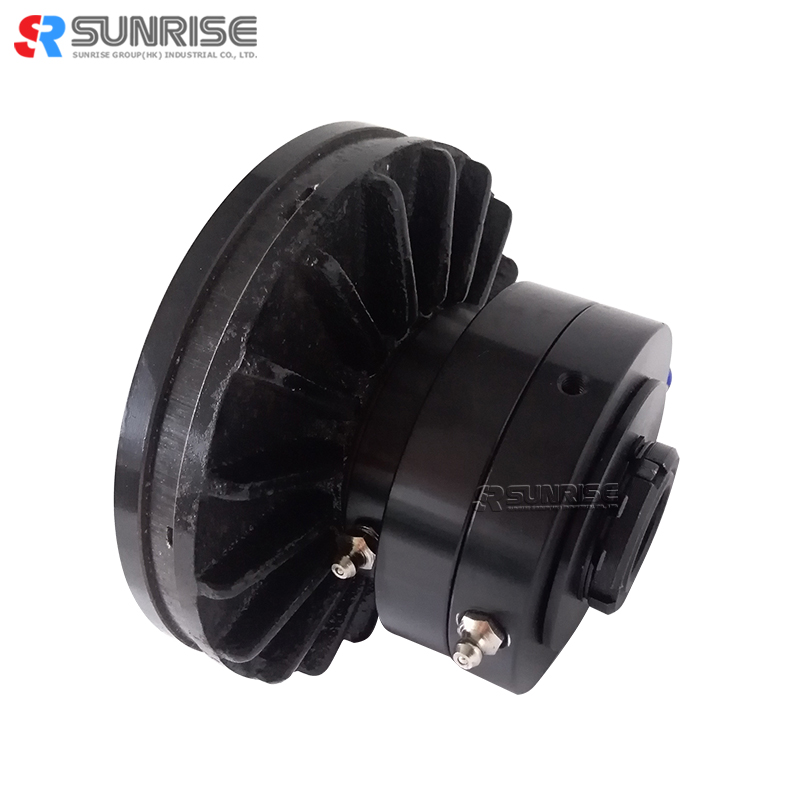

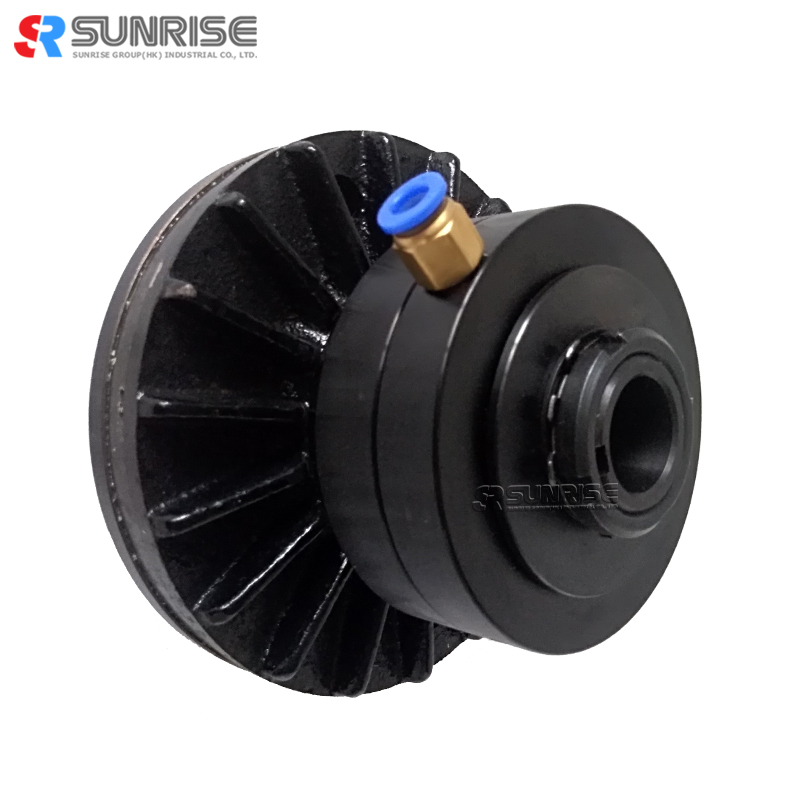

Direct manufacturer of air clutch and brake unit
Air clutch Outline
NAC clutches are designed for dry use. The pressure supply is fed into the cylinder via a flexible tube. Positive disengagement is achieved by the use of return spring.
Air clutch Features
Does not require adjustment.
Sealed cylinder ensures low air consumption.
Regulating the supply pressure can vary torques
Varying the supply flow rate can control speed of engagement.
Single friction face design virtually eliminates drag torque.
Axial thrusts are contained within the unit.
Basic Parameter
Function: Pneumatic Disc Clutch Air Disc Clutch NAC series
Brand: Sunrise Group/ None
Item No.: NAC-5, NAC-10, NAC-20, NAC-40
Material: Steel ...
Static torque [kgf-m](N-m) at 0.6 Mpa: 5(50)~40(400)
Air chamber capacity (cm3):
Min Vn: 5.359~20.42; Max Vo: 14.01~86.01
Plate allowed clearance Vf (cm3): 25.58~148.2
Max rotation speed Nc (r/min): 1800
Weight: 5~21.8
Price: US $200/pc
MOQ: 1pc
Payment term: T/T, Western union
Delivery term: EXW
Validity: 10 days
Lead time: 5-15 days
Website: sunrisescn.com
Dongguan Sunrise Precision Electromechanical Technology Co., Ltd.
Contact Person: summer
Department: Sales Department
Post: Sales Manager
Telephone: +86 15820882236
Landline: 0769-21684546
Company Address: Rm. 505, Unit 1, Hongyuan Kangcheng Bldg., No. 9, Hongyuan Gangkou Road, Nancheng Dist., Dongguan, Guangdong, China (Mainland)
Website: www.sunrisellc-asia.com
