Dongguan Factory Supply SUNRISE Price Visibility High Class Pneumatic Disc Brake


Air disc brake outline:


The air disc brake is widely used in high accuracy tension control and provides the torque control from 160-960 Nm. With min air pressure 0.02Mpa and max air pressure 0.6Mpa. It is widely application in processing industries, such as packing, tissue paper and corrugated paper.

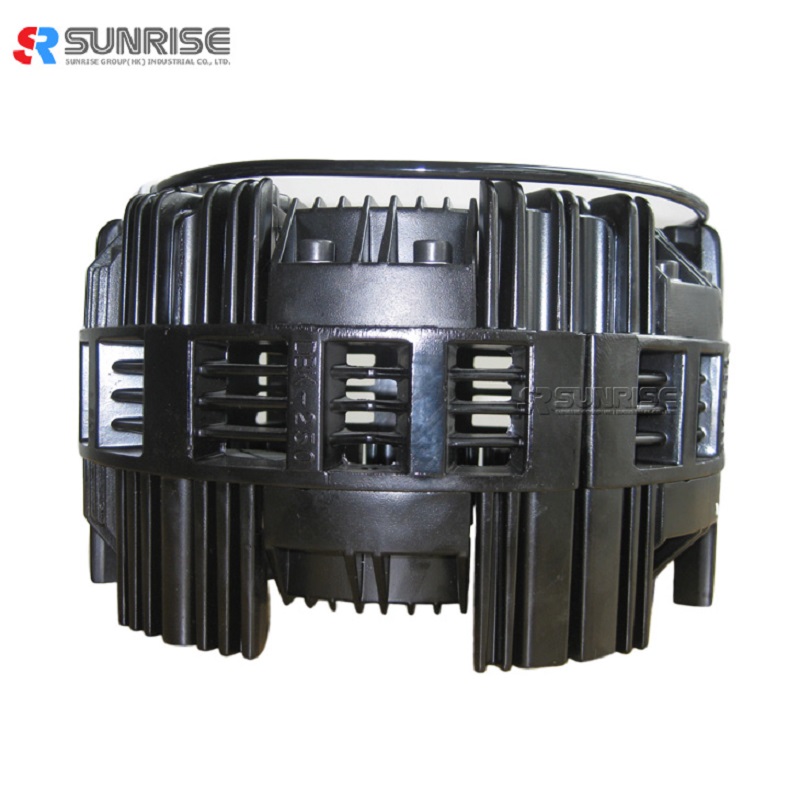

DBK Fan cooled brake/ air disc brake


The primary function of brakes is the conversion of mechanical energy into heat which is then dissipated into the atmosphere.

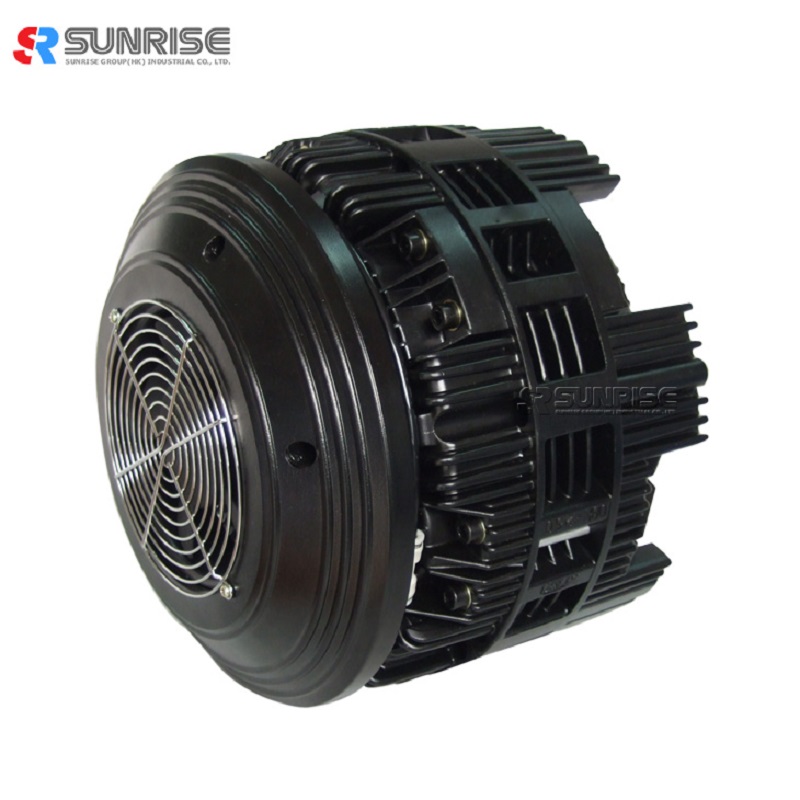

The amounts of heat which can be dissipated by air cooled disc brakes are dependent on a high rotational speed, large disc diameter, and large radiant surface. With the addition of an electric fan fitted to the centre of the housing, the best possible thermal power dissipation as achieved without high dependency on speed, and avoiding the need to increase the disc diameter in continuous slipping applications suitable for high heat dissipation.


Air disc brake advantage:


*Dimensionally smaller units, giving a more compact machine design

*Reduction in price due to smaller design

*Lower top speeds minimized the wear of the linings

*Constant controllable torque from a stable friction lining material

*Suitable for all types of applications

*Suitable for high heat dissipation


With or without fan which depends on customer's request.


Air disc brake data:

Function: Pneumatic Disc Brake Air Disc Brake DBK series

Brand: Sunrise Group/ None

Item No.: DBK 250.1, DBK 250.2, ...

Material: Plastic ...

Basic Parameter

Model: DBK (the dia. of brake disc is 250mm)

Air pressure: Min 0.02; Max 0.6

Sliping torque for each caliper (kgf-m)[N-M]: 0.15(1.5); 16(160)

Thermal power (KW):

With fan: 3.5(100rpm)~9.0(1000rpm)

Without fan: 1.3(100rpm)~4.8(1000rpm)

Moment of inertia (Kgcm²): I=0.058kg²

Maximum speed (r/min): 2500

Weight: 22


1) Thermal power: The value of the power has been obtained in the following test conditions:

A)Discss in continuous rotation with ambient temperature + 30º

B)Tempetature on the disc + 150º

2) Direction of rotation: with clock wise rotation, the power need to reduce by 15% in counter clock wise rotation.

Price: $280/pc

MOQ: 1pc

Payment term: T/T, Western union

Delivery term: EXW

Validity: 10 days

Lead time: 5-7 days
