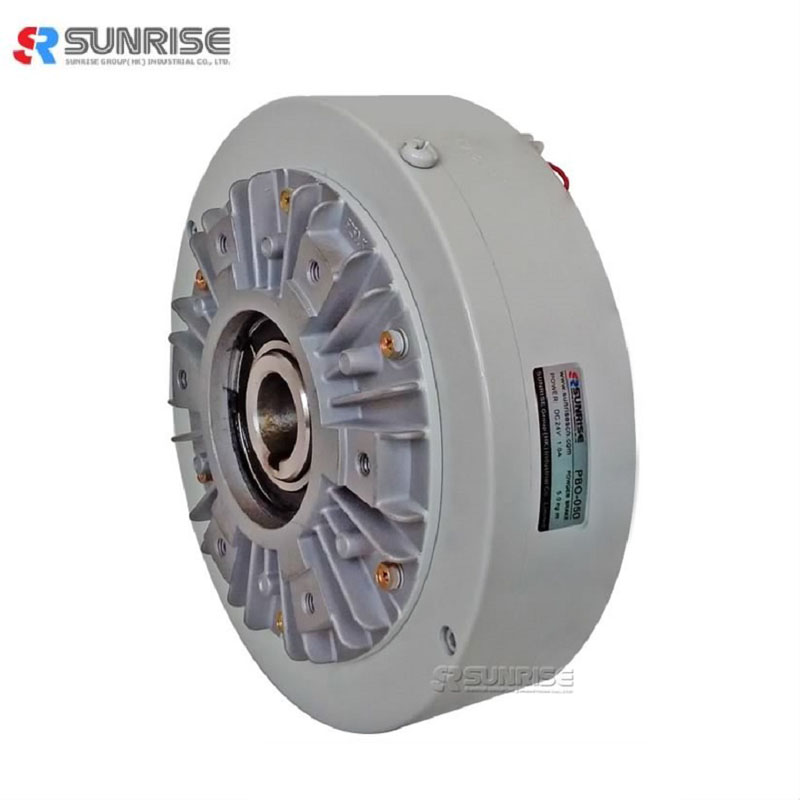

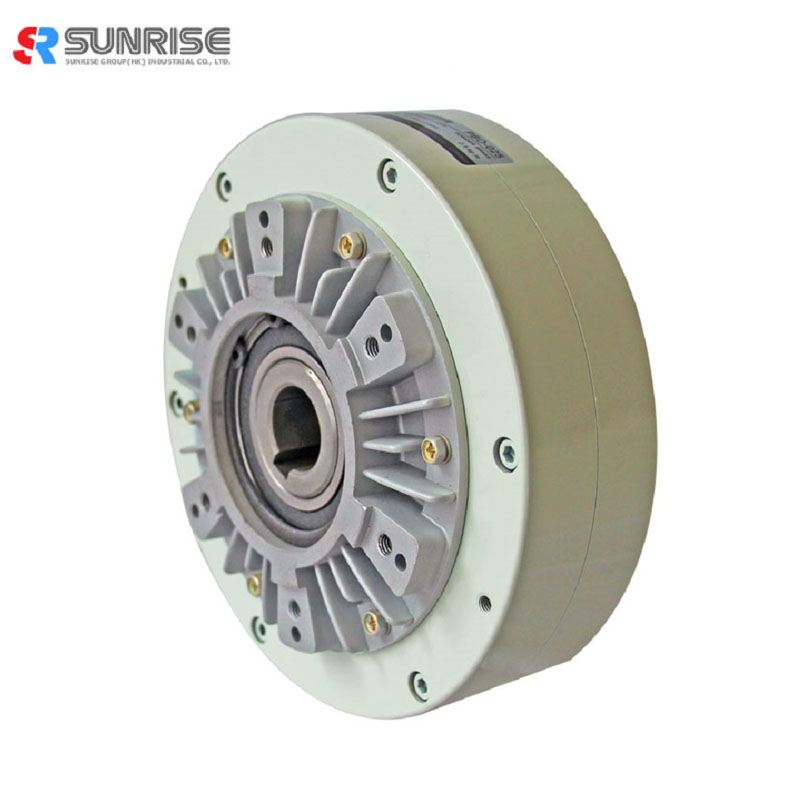

Dongguan SUNRISE Magnetic Powder Brake for Tension Controller

PBO Magnetic powder brake description:

The magnetic powder brake respectively brake achieves at a low gate powers a high torque being independent from the slip speed. It distinguishes itself by a simple structure, low weight and requires little place. #magneticpowderbrake

This advantage makes it possible that the clutch resp. brake can be employed in the solution of many technical problems. For the different applications are needed appropriate regulation and control devices. We can deliver such proven devices. #magneticpowderbrake

Function: Printing Machine Magnetic Clutch Powder Brake for tension controller PBO series

Brand: Sunrise Group/ None

Item No.: PBO-006, PBO-015, PBO-025, ...

Material: Steel ...

Usage: Maintain, braking, buffer start, tension control, torque limit etc.

Rated torque [kgf-m] (N-m): 0.6(6)~40(400)

Capacity DC24V (75℃):

Current (A): 0.5~2.5; Powder (W): 7.2~70; No. of hour set (S): 0.10~0.4

Moment of inertia (Kg cm²): 1.55×10^(-3)~2.0×10^(-1)

Max. speed (r/min): 1500

Weight of powder (g): 14~370

Price: US $130/pc

MOQ: 1pc

Payment term: T/T, Western union

Delivery term: EXW

Validity: 10 days

Lead time: 5-7 days

Website: sunrisescn.com
