Factory Manufacture High quality Sensor Roller for Automatic Tension Controller

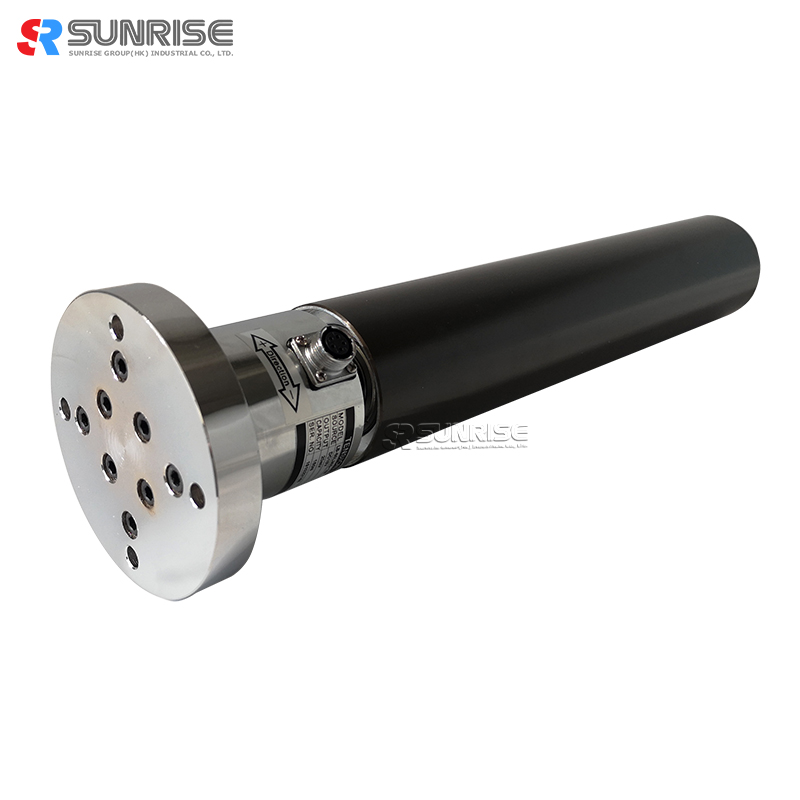

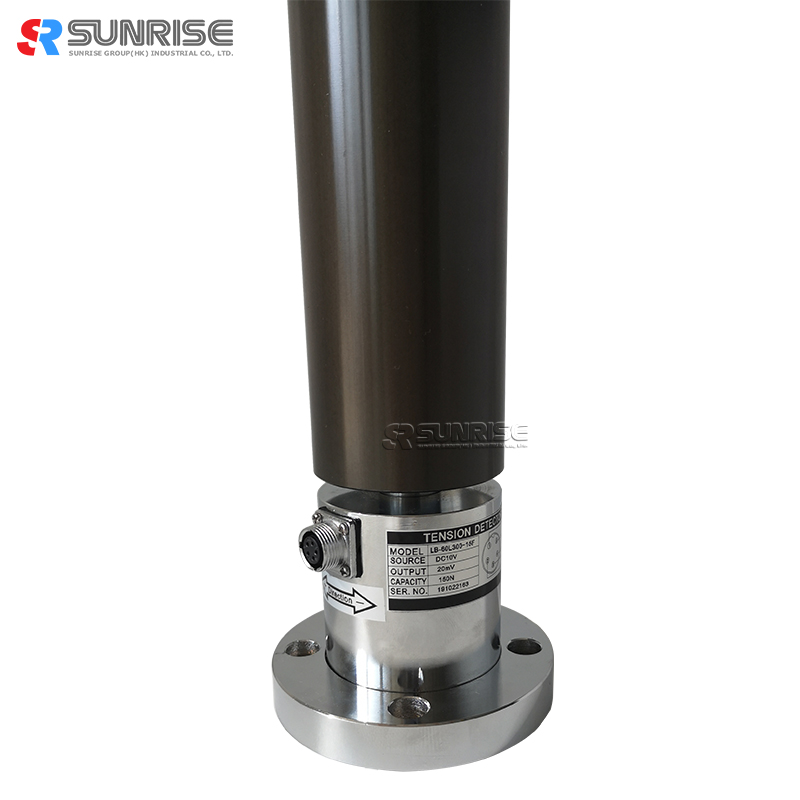

LB sensor roller series

LB series sensor roller can be used for paper ,film, foil and other coil material to measure the tension precisely and without repeatability error. LB series sensor roller is designed for machines with one-sided cantilever roller, such as table machine, label printer and tape machine etc... The detecting signal of LB series sensor roller is changed based on the change of coil tension, not affected by the position of roller, meanwhile, it adopts for inside double-cantilver protective structure to prevent the sensor be damaged from overloading.

LB sensor roller series feature:

1. Aluminum roller with fixed axle and two integrated load cells
2.Assembly flange at one side for cantilevr mounting
3.High operational reliability due to overload protection up to 10 times the nominal measuring forece
4.Different foller diameters from 60-100mm assure maximum flexibility
5.No influence of the roller weight on the measuring reault when ounted horizontally in the measuring direction
6. Favorable temperature behavior and the high degree of linearity due to strain gauge application on a level surface.
