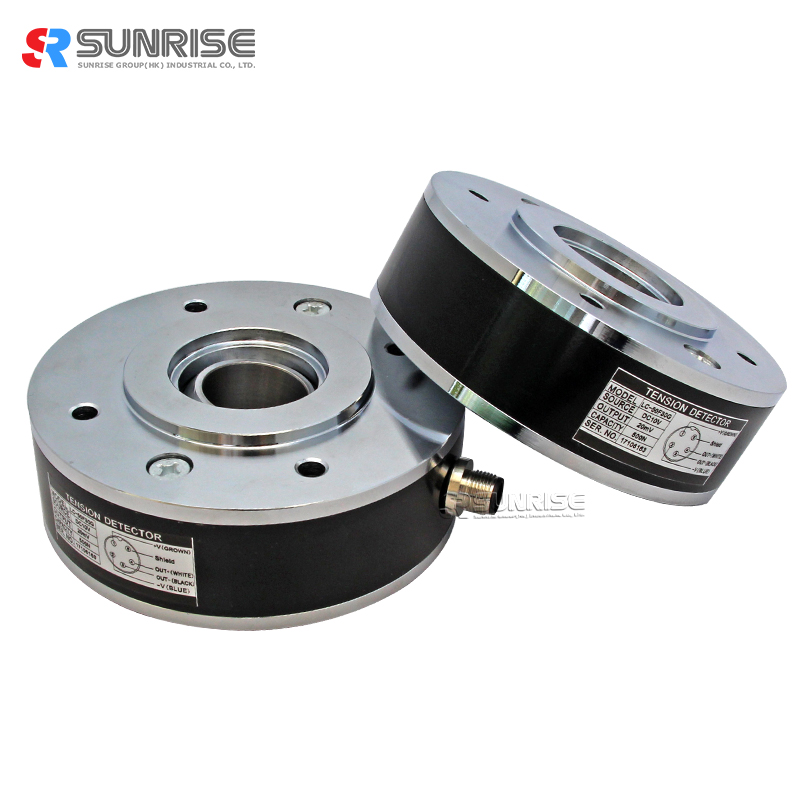

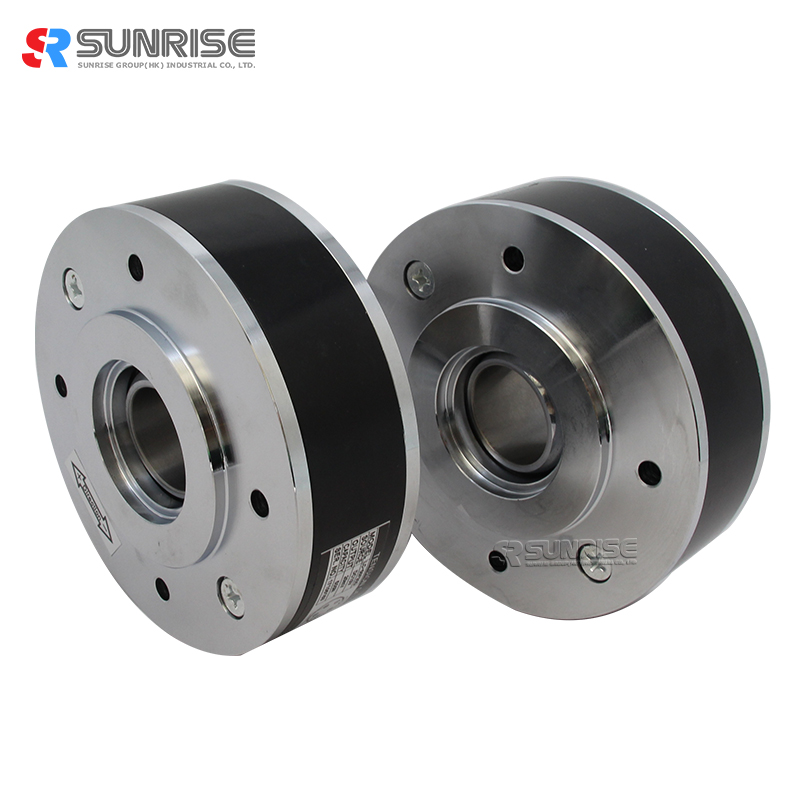

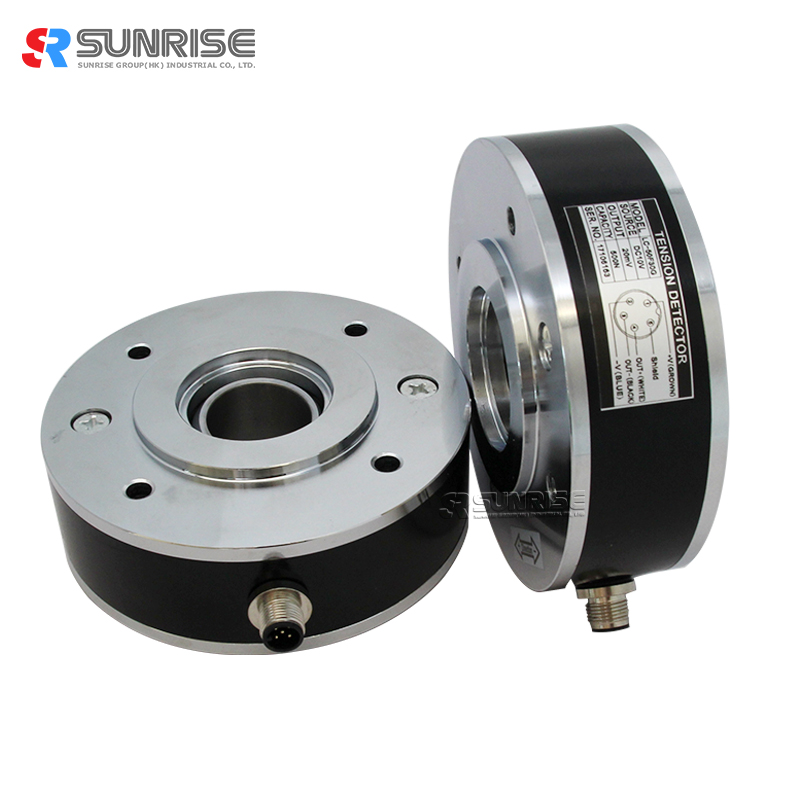

Function: LC hollow shaft tension load cell

Features

1. Low hysteresis

2. Temperature compensation

3. Full-bridge strain resistance

4. Excellent linearity and stability

5. Apply to idler roller and live round roller detecting

6. With maximum overloading to 500% of rated loading

Parameter

Excitation voltage: 100VDC

Output voltage: 2m V/V (Factory setting)

Stain resistance value/type: 350Ω

Detecting type: Full-bridge

Max. output signal: 150% TYP

Synthetic error: <0.5%

Max. overloading capacity: 500% rated loading

MOQ: 1pc

Payment term: T/T, Western union

Delivery term: EXW

Validity: 10 days

Lead time: 3-7 days
