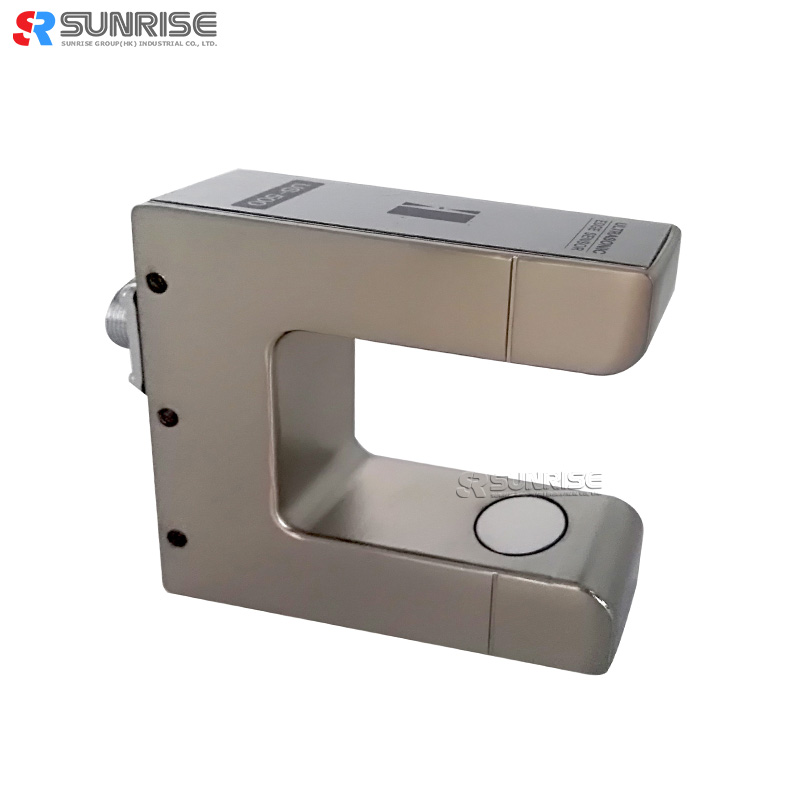

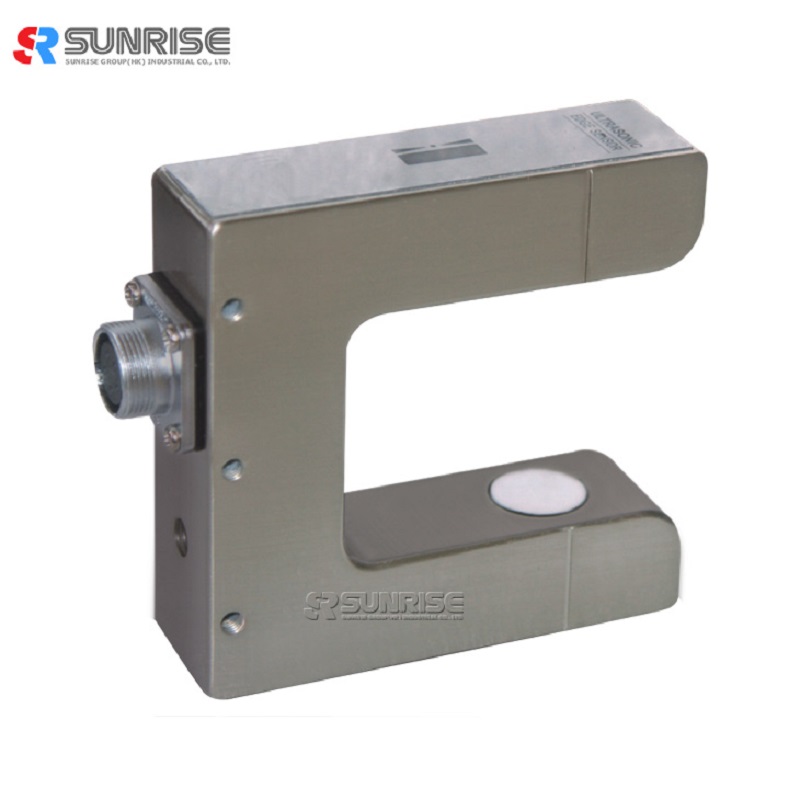

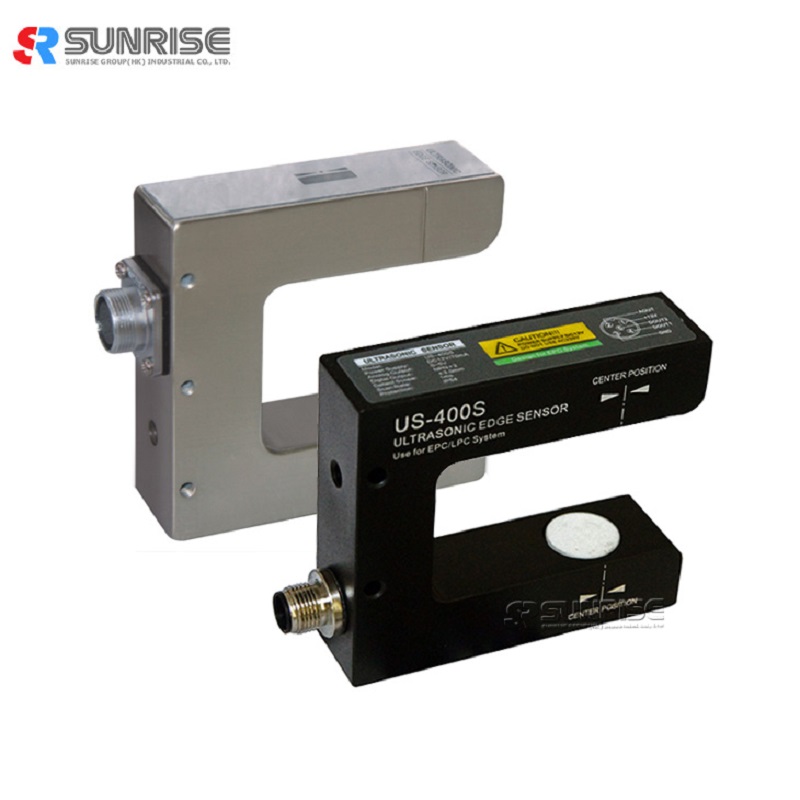

Function: Web Guiding Control System Ultrasonic Sensor US-500/US-400S

Brand: Sunrise Group/ None

Item: US-500/US-400S

Features:

1. Support analogue/ on-off output, can match with EPC-A10 web guiding controller to use;

2. Suitable for edge-tracking application of opaque, transparent and ultra-transparent film and line-tracking ultra-transparent thin film;

3. No need adjustment and calibration manually;

4. 200K ultrasonic correlation;

5. 0.05mS response time;

6. Detecting range: 6mm, detecting precision: 0.05mm;

7. With own offset display.

Material: Aluminum alloy, plastic etc.

Tracking method: Edge tracking

Power input: DC 12V

Signal output: 0~5V/ two way switch signal

Detecting range: 6mm (+/-3.0mm)

Detecting precision: +/-0.05mm

Carrier frequency: 200KHz

Housing: Aluminium

Protection level: IP54

Weight: 300g

Detecting method: Ultrasonic through beam

Material calibration: No need

Price: $160/pc

MOQ: 1pc

Payment term: T/T, Western union

Delivery term: EXW

Validity: 10 days

Lead time: 5-7 days
