Hot Sales Edge Position Controller for Web Guiding Control System

Keywords :

Hot Sales Edge Position Controller / Web Guiding Controller / Web Guiding Control System


  • Hits : 32
  • Release Time : 2019-08-26 09:51:54
  • Company : Dongguan Sunrise Precision Electromechanical Technology Co., Ltd.
  • Mobile : +86 15820882236
Contact Us

Details

Contact Us

Five Advantages Of Products

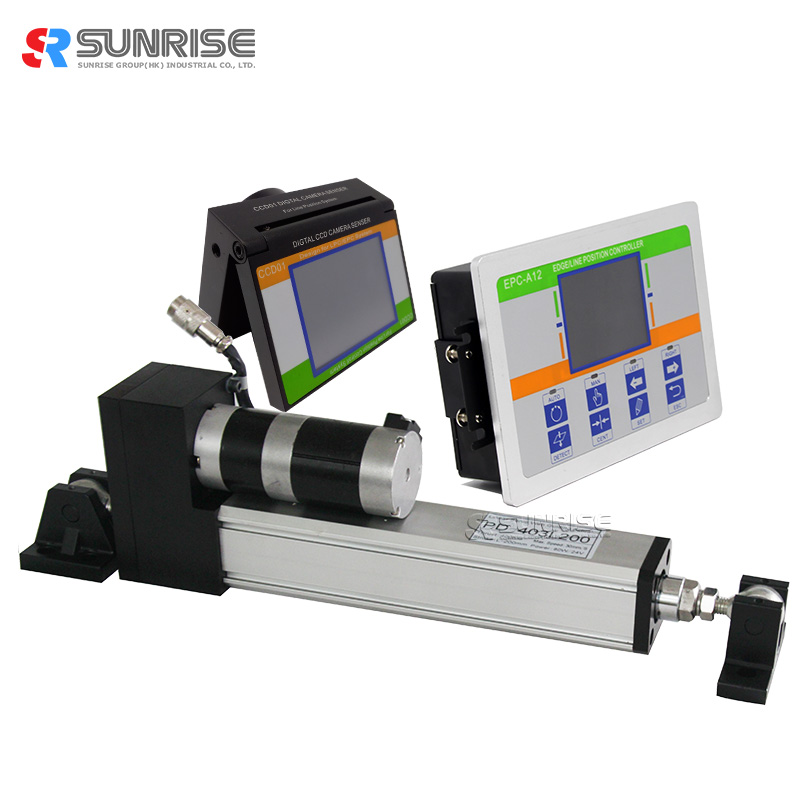

  • web guiding controller with CCD sensor with actuator PD servo
  • hot sale web guide controller with photoelectric sensor
  • OEM high quality web guiding control system web guide controller
  • fast delivery web guiding control system set good quality controller
  • industrial use web guiding controller with ultrasonic sensor

Product Details

Function: Web Guide Controller

Brand: Sunrise Group/ None

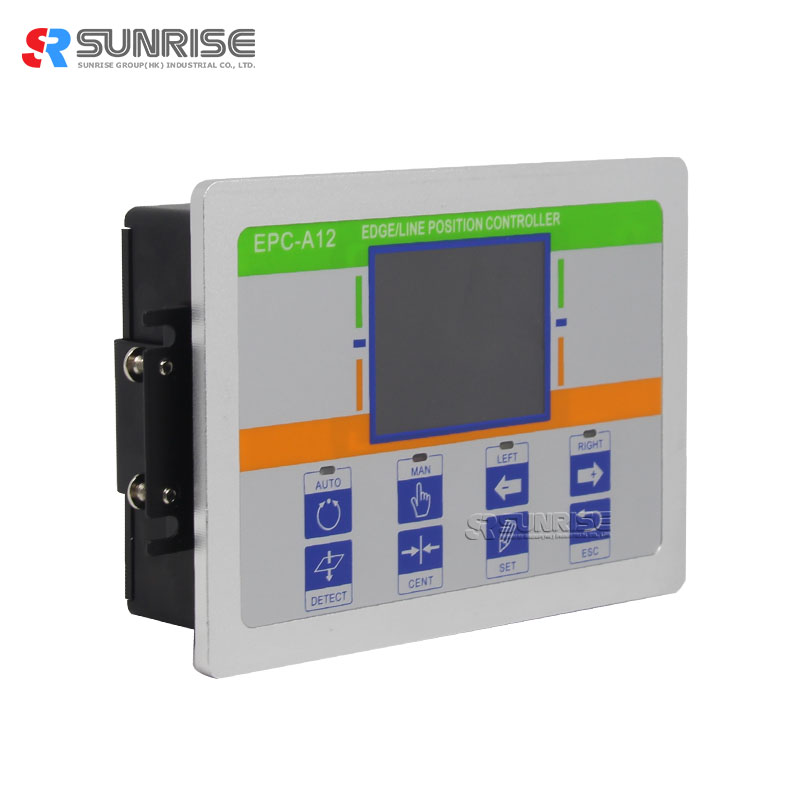

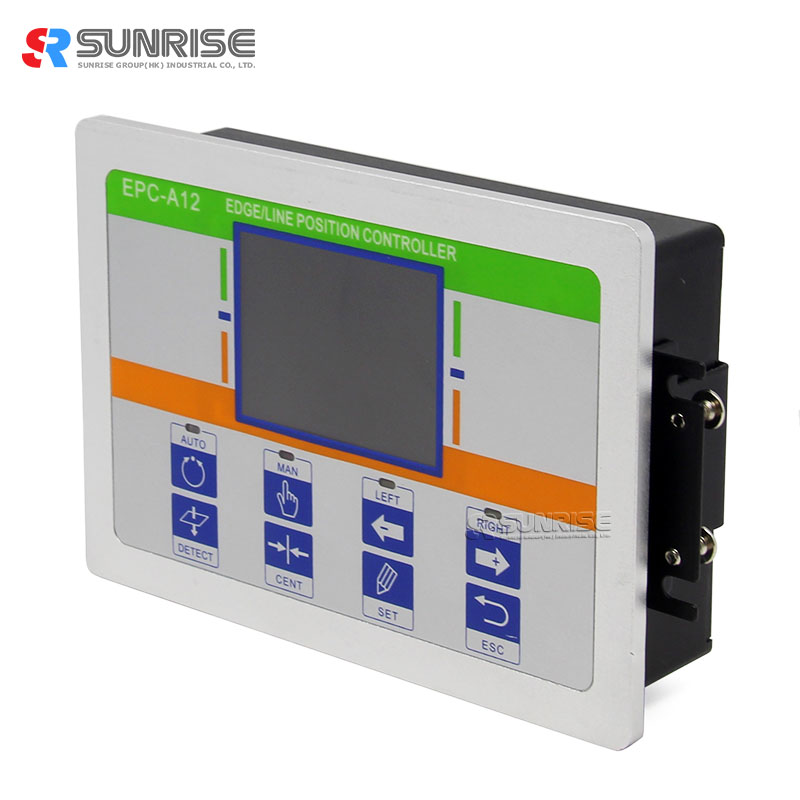

Item NO.: EPC-A12

Material: Aluminum ...

Features:

1. High performance servo motor vector driving with quick response speed, support direct torque control, accel-decel,speed limited

2. With high-speed CUP calculation which support EPC (edge), LPC(line), CPC (central) and SPC(S-shaped)...etc web guiding

3. Compatible with Ultrasonic sensor, photoelectric sensor, CCD sensor.

4. Large color touch screen with HMI, easy operation.

5. Integrated set-up guide and help system, there is help button for each operate page.

6. Actuator adopt servo motor to drive ball screw which with high accuracy, less noisy and maintenance-free.

7. Actuator adopt servo motor to drive ball screw which with high accuracy, less noisy and maintenance-free.

8. With 3-way high speed analog input which can connect two analog sensor and one way external control simulation.

9. With 3 optical isolation switch input which can set different function.

10. Multiple software and hardware protection measures with stable operation and strong anti-interference ability. There are different emergency solutions for the failure of each component, to ensure it work with 24 hours

11.  Flexible installation methods.


Installation:

Panel mounted/ Wall mounted/ Embedded mounted

Parameter

Power supply: DC24V ~45V ,Standard 24V

Motor driving ability: AC24V-45V, 10A Max

Encoder power supply: DC15V, 200mA Max

Analog input: 3-way 0~5V, impedance20K

Sensor voltage: DC12V, 350mA Max

Correction response time: 0.5mS

Analog input resolution: 12-bit ADC

On-off input: 3-way NPN

Correction method: line/edge/central/s-shape

Compatible sensor: ultrasonic, photoelectric, CCD

Actuator speed: 1mm/s~75mm/s

Actuator thrust: 100KgF~1500KgF

ESD protection:  IEC1000 - 4 - 2, ±15Kv ( Air ), ±8Kv ( Contact )

Screen display: 2.8 inch 260k color or 4.3 inch 260k color

HMI type: TFT touch screen

Protective: IP53

MOQ: 1pc

Payment term: T/T, Western union

Delivery term: EXW

Validity: 10 days

Lead time: 5-7 days
