Hot Sales High Quality EPC Edge Guiding Ultrasonic Sensor Detector

Outline:

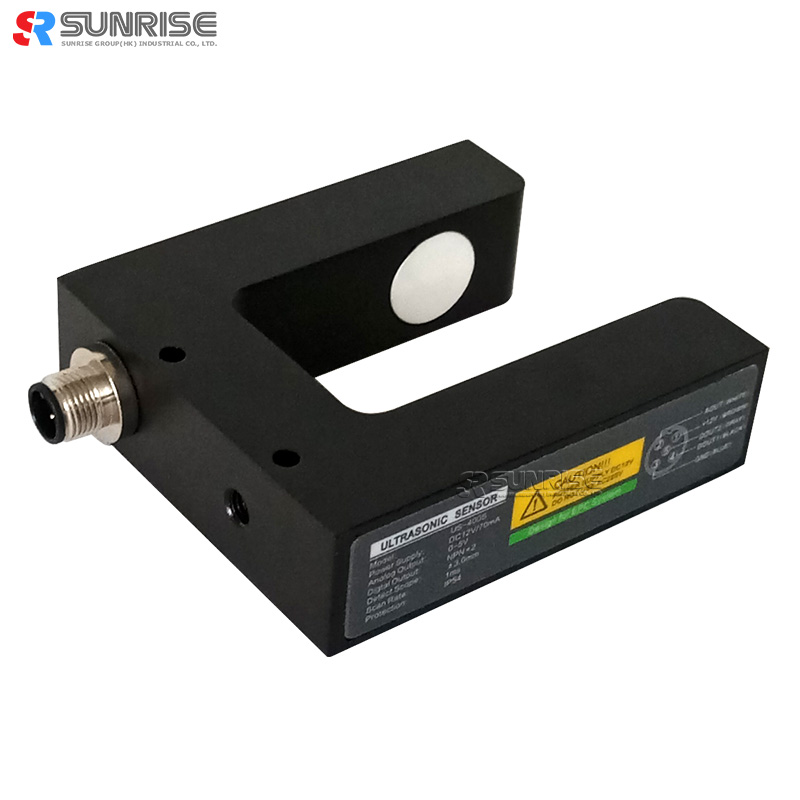

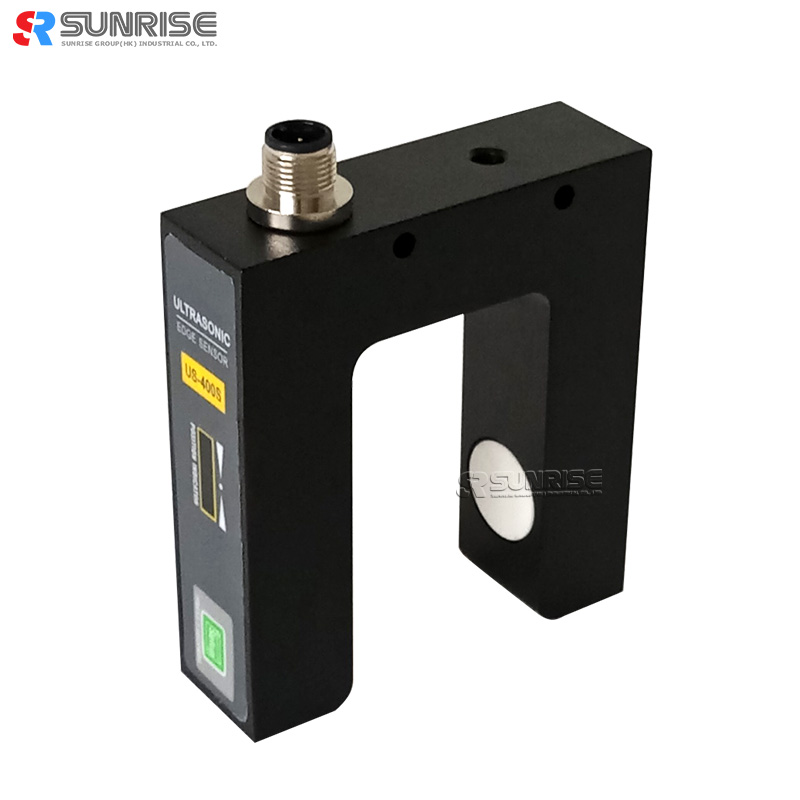

US-500/US-400S Ultrasonic sensor applies the principle of high frequency ultrasonic linear transmission to detect the edge of the material, comparing to  photoelectric sensor, it will not be affected by the transparency of the materials. Thus it is very convenient and no need to adjust. It is suitable for edge application of opaque material (such as plastic film, paper etc and transparent material, such as cloth, but not for non-woven fabrics).

Features:

Support analogue /on-off output, can match with EPC-A10 web guiding controller to use;

Suitable for edge-tracking application of opaque, transparent and ultra-transparent film and line-tracking ultra-transparent thin film;

No need adjustment and calibration manually;

200K ultrasonic correlation;

0.05 mS response time;

Detecting range:6mm; detecting precision: 0.05mm;

With own offset display.

Technical Parameter:

Tracking method: Edge tracking

Power input: DC 12V

Signal output: 0-5V/ two way switch signal

Detecting range: 6mm (±3.0mm)

Detecting precision: ±0.05mm

Carrier frequency: 200KHz

Housing: Aluminum

Protection level: IP 54

Weight: approx. 300g

Detecting methos: Ultrasonic through beam

Material calibration: No need
