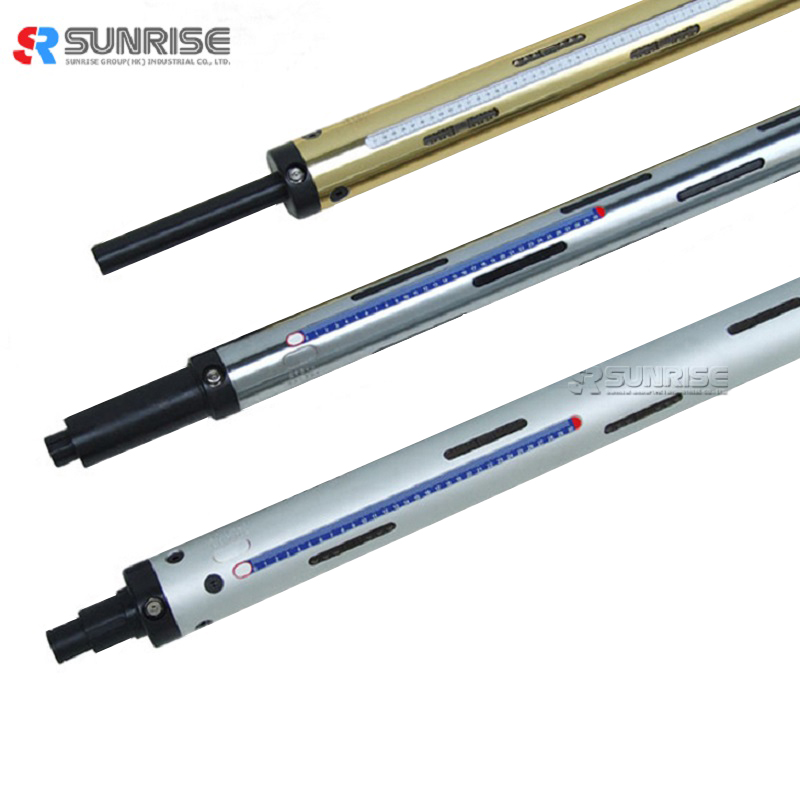

Lug type Pneumatic Air Shafts Air Expanding Shaft, Board Type Air Adapter

What is an Air Shaft?

Sunrise air Shafts are used in the manufacturing processes for fitting into a core onto which materials such as paper, card and plastic film are wound. An Air Shaft is designed so that, on fitting into a core, it can be readily expanded, thereby achieving a quick and firm attachment, it may also be easily deflated to facility easy withdrawal of the shaft after winding of product is complete. Their efficient design makes them ideal for mounting onto bearing housings to enable the winding or unwinding of rolls of stock material with the minimum of equipment down time. The advantage of using an Air Shaft is its ability to grip the core, without damage, whilst providing a positive interface to control the web via motors & brakes. Air Shafts are available as either Key/Lug Type (with bladder down the center) or Board/Leaf Type (bladders on the periphery of the shaft)

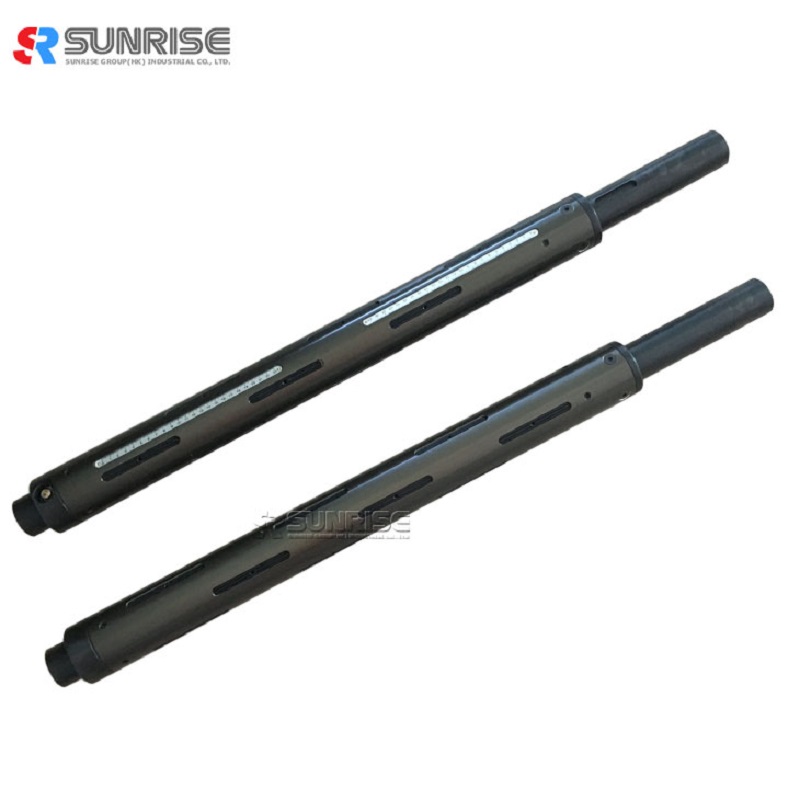

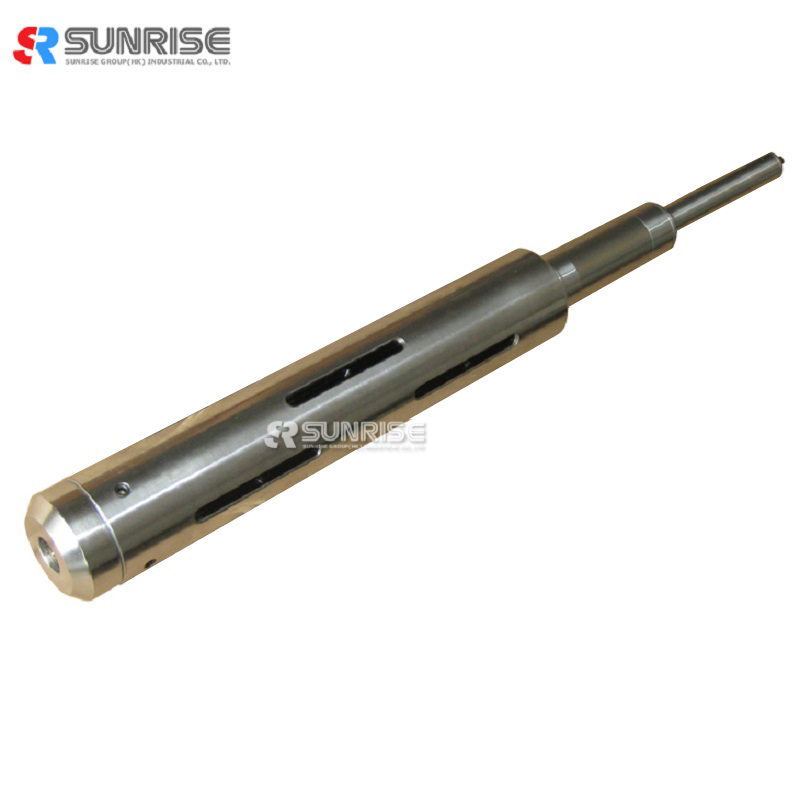

Key type (Lug Style) air shaft

Expands instantaneously for fast roll mounting.

Grips cores securely without core or roll damage.

Used for unwind or rewind positions.

Manual or automatic rotary union air supply.

Positive collapse for quick roll removal.

Reliable performance.

Manufactured to your specifications to suit your equipment.

Ideal for plastic, aluminum or steel cores.

Urethane surface lugs are available to enhance gripping.

Basic Parameter

External diameter without air inflating (Ømm)

3": Ø74~Ø75

4": Ø99~Ø100

5": Ø125

6": Ø150

8": Ø200

10": Ø250

12": Ø300

External diameter with air inflating (Ø)mm

3": Ø80~Ø82

4": Ø104~Ø106

5": Ø130~Ø133

6": Ø154~Ø156

8": Ø206~Ø264

10": Ø260~Ø264

12": Ø308~Ø310

Apply to reel pipe with internal diameter as below( Φ)mm

3": Ø75.5~Ø78

4": Ø101~Ø102

5": Ø126~Ø128

6": Ø151~Ø153

8": Ø202~Ø204

10": Ø252~Ø256

12": Ø302~Ø305
