Printing Machine Use Web Guide Control System EPC-A12 Controller with photoelectric sensor

Outline:

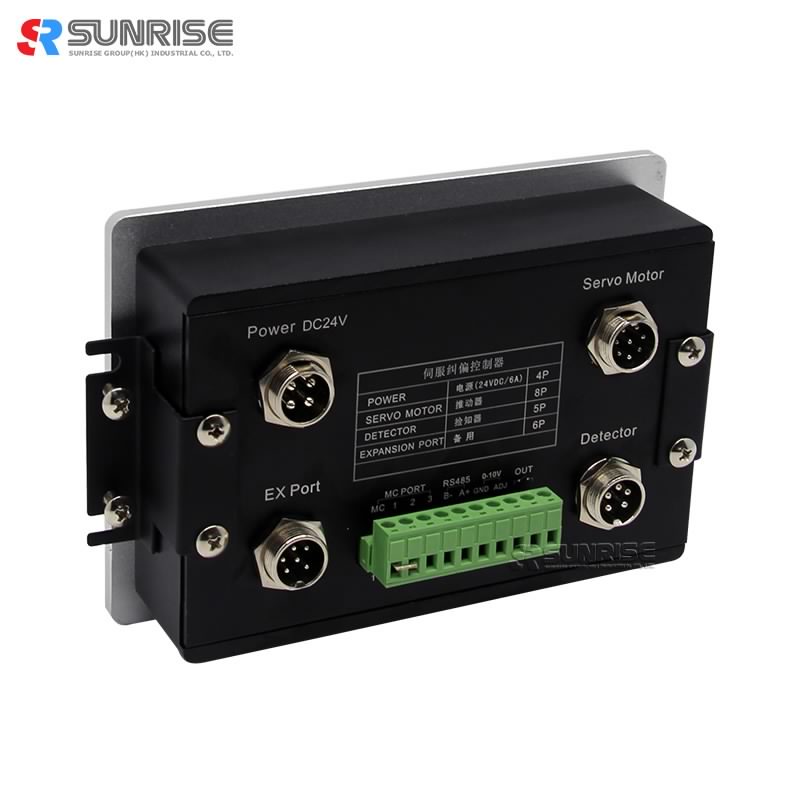

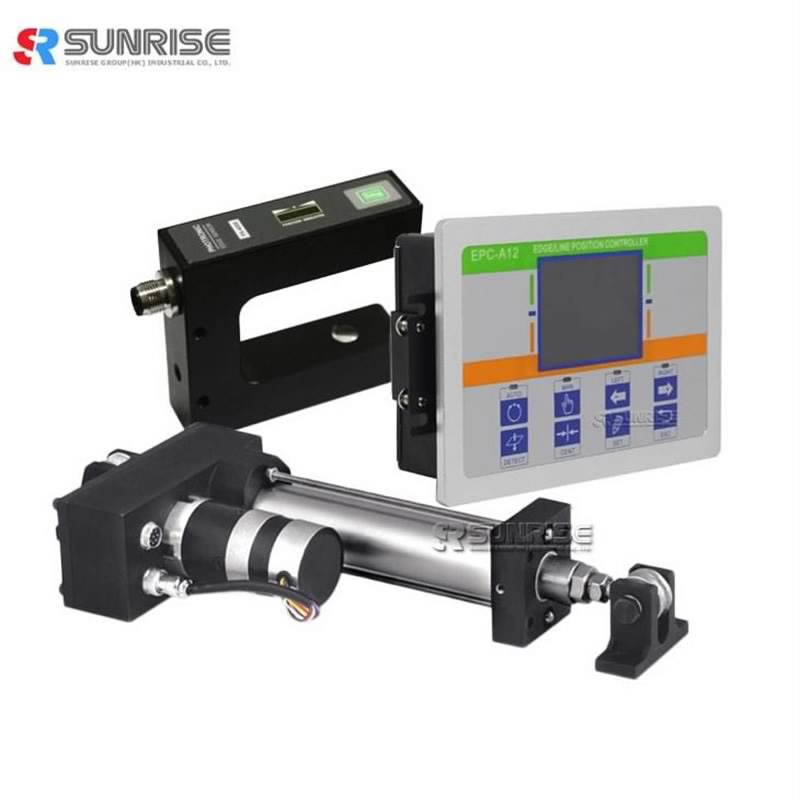

EPC-A12 Servo Web Guide Control System which compatible with different type of web guide sensors and actuator, support EPC (edge), LPC(line), CPC (central) and SPC(S-shaped)...etc web guiding. With large color touch screen as HMI, easy operation, elegant appearance. With set guide and online help system. Easy to operate this system with basic setting for the first time.

Features:

1. High performance servo motor vector driving with quick response speed, support direct torque control, accel-decel,speed limited

2. With high-speed CUP calculation which support EPC (edge), LPC(line), CPC (central) and SPC(S-shaped)...etc web guiding

3. Compatible with Ultrasonic sensor, photoelectric sensor, CCD sensor.

4. Large color touch screen with HMI, easy operation.

5. Integrated set-up guide and help system, there is help button for each operate page.

6. Actuator adopt servo motor to drive ball screw which with high accuracy, less noisy and maintenance-free.

7. Actuator adopt servo motor to drive ball screw which with high accuracy, less noisy and maintenance-free.

8. With 3-way high speed analog input which can connect two analog sensor and one way external control simulation.

9. With 3 optical isolation switch input which can set different function.

10. Multiple software and hardware protection measures with stable operation and strong anti-interference ability. There are different emergency solutions for the failure of each component, to ensure it work with 24 hours

11. Flexible installation methods.

Technical parameter:

Power supply: DC24V ~45V, Standard 24V

Motor driving ability: AC24V-45V, 10A Max

Encoder power supply: DC15v, 200mA Max

Analog input: 3-way 0~5V, impedance20K

Sensor voltage: DC12V, 350mA Max

Correction response time: 0.5ms

Analog input resolution: 12-bit ADC

On-off input: 3-way NPN

Correction method: line/edge/central/s-shape

Compatible sensor: ultrasonic, photoelectric, CCD

Actuator speed: 1mm/s~75mm/s

Actuator thrust: 100KgF~1500KgF

ESD protection: IEC1000 - 4 - 2, ±15Kv (Air), ±8Kv (Contact)

Screen display: 2.8 inch 260k color or 4.3 inch 260k color

HMI type: TFT touch screen

Protective: IP53
