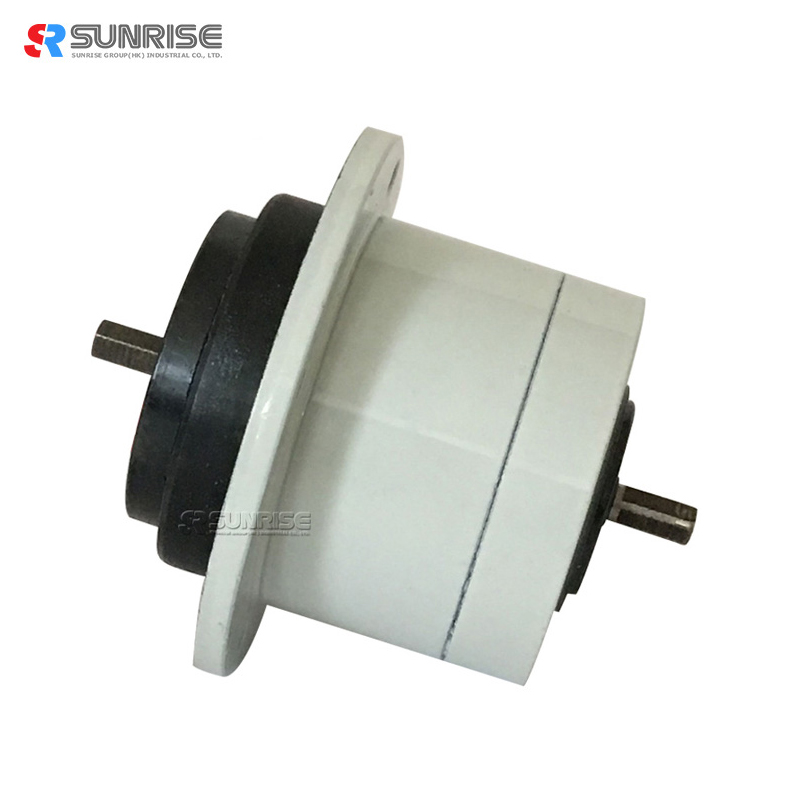

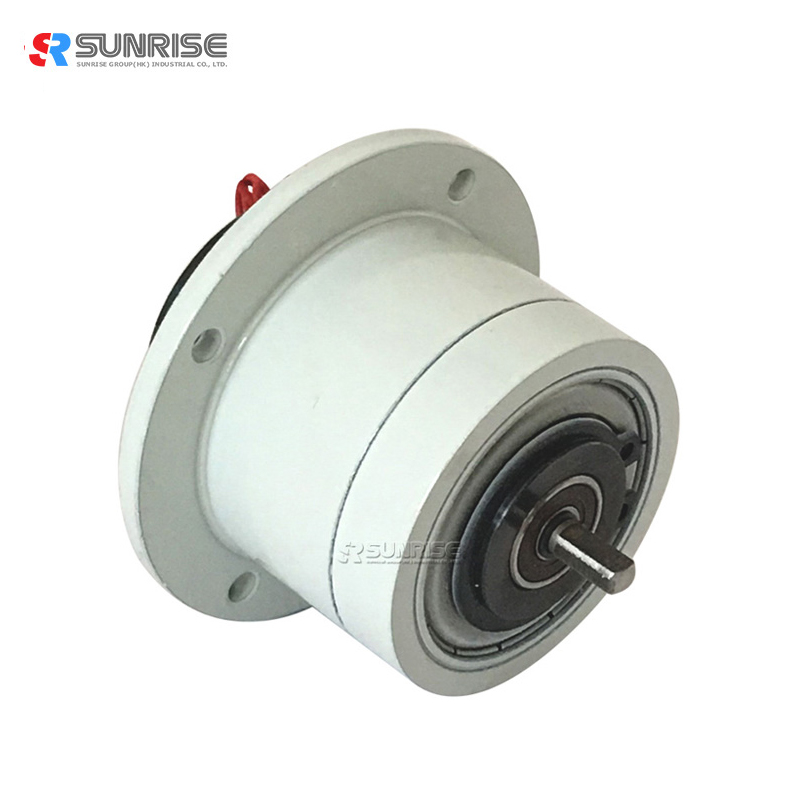

SUNRISE Micro Industrial Magnetic Powder Clutch PMC series

Magnetic particle clutch fields of application:

Unwind brakes / winding

Torque controls

Speed controls

Clutch proceedings

Start controls

 #magneticpowderclutch

Magnetic particle clutch and powder clutch key features:

1.    Using antifriction, anti-erode super alloy magnetic powder as material.

2.    Clutch and brake powder and slide rate is high which can slide neatly and is not arose shake.

3.    The coil is covered by red H grade heat resistance material which is not easy to burn by lighter.

4.    Our bearing is imported from Japan which can bear up 180 degrees.

Function: Printing Machine Magnetic Clutch Powder Brake for tension controller PMC series

Brand: Sunrise Group/ None

Item No.: PMC-5, PMC-10, PMC-20 ...

Material: Steel ...

Usage: Unwind brakes / winding, torque controls, speed controls, clutch proceedings, start controls etc.

Basic Parameter:

Rated torque[kgf-m] (N-m): 0.05(0.5)~1(10)

Capacity (DC24V) at 75℃

Current(A): 0.35~1.0

Power(W): 8.4~24

No. of hours set (S): 0.02~0.09

Weight(kg): 0.67~4.1

Area of heat release (cm2): 350

Maximum speed (r/min): 1800

Price: US $190/pc

MOQ: 1pc

Payment term: T/T, Western union

Delivery term: EXW

Validity: 10 days

Lead time: 5-7 days

Website: sunrisescn.com
