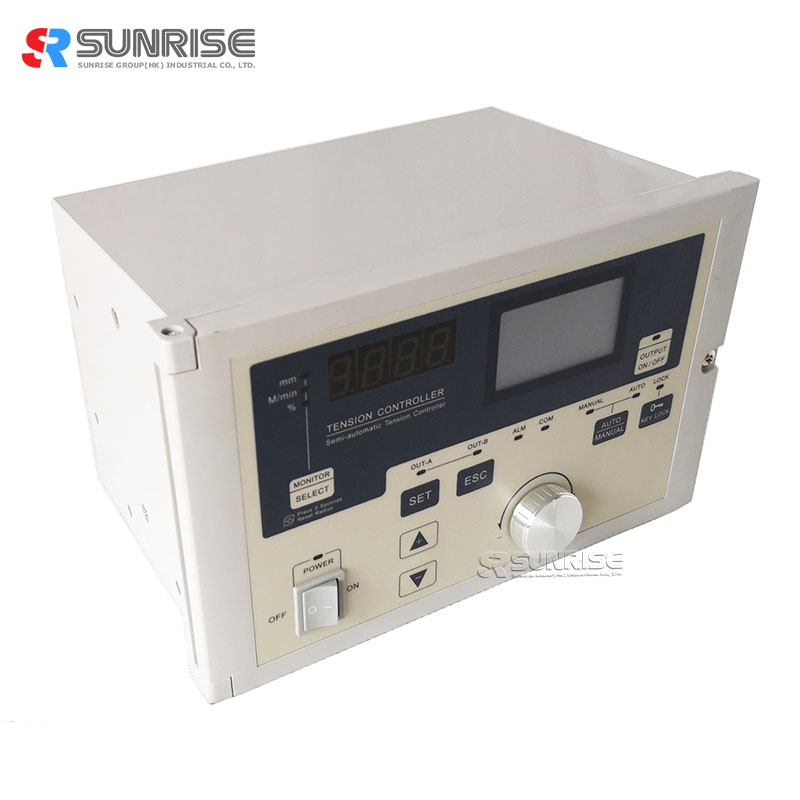

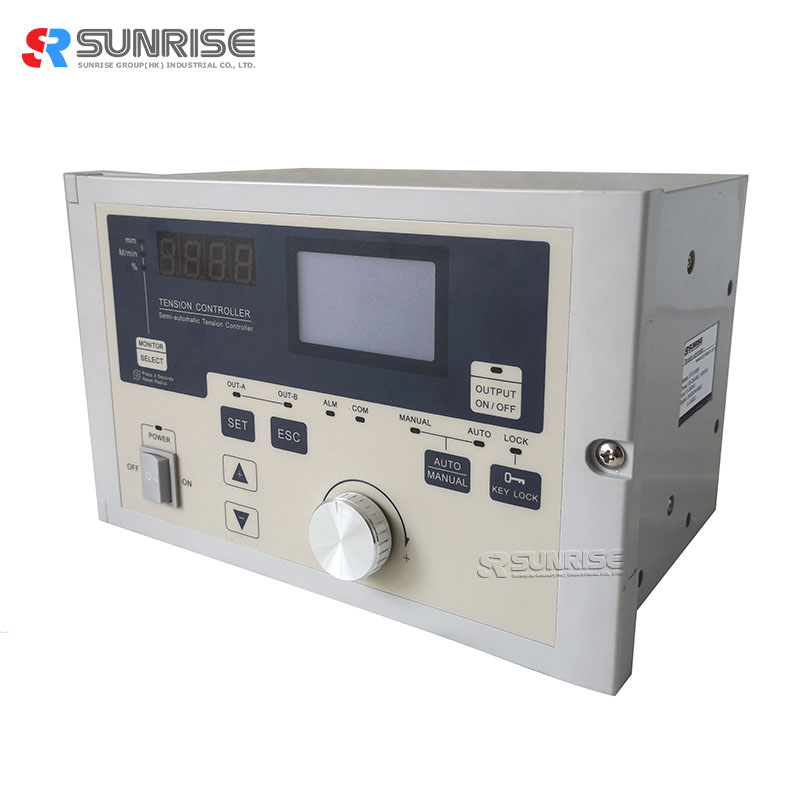

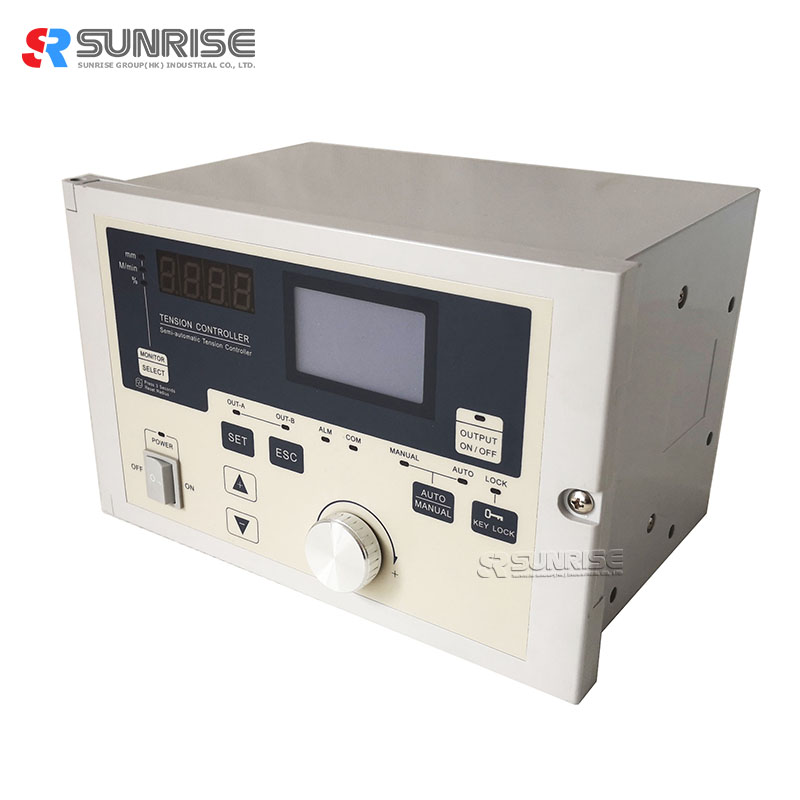

Slitting Machine use Semi-autonatic Tension Controller STC-858B

Keywords :

semi-automatic tension controller / tension controller for slitting machine / semi-automatic controller STC-858B


  • Hits : 9
  • Release Time : 2019-08-17 10:19:29
  • Company : Dongguan Sunrise Precision Electromechanical Technology Co., Ltd.
  • Mobile : +86 15820882236
Contact Us

Details

Contact Us

Five Advantages Of Products

  • OEM slitting machine use tension controller STC-858B
  • hot sell semi-automatic tension controller
  • semi-automatic tension controller for slitting machine
  • winding machine tension control system, semi-automatic tension controller
  • machine fittings semi-automatic controller STC-858B

Product Details

Function: Semi-autonatic tension controller STC-858B

Features:

1) The menu function enables storage and reading of 4 types of operation data.

2) The optional memory cassette enables reading of operation data and writing of data in the other STC-858B tension controller.

3) The controller has a weak excitation function for the powder clutch/brake.

This function will improve the torque rising operation in low-speed operation mode or during the initial start-up of machine.

4) The controller automatically judges the polarity of the detector signal, therefore, wiring is performed with igoring the specification (compression or tension).

5) The dot matrix type inquid crystal diaplay is adopted for this controller, it has the capability of displaying Chinese characters.


Working condition:

Ambient temperature: 0~40℃

Environment humidity: 35~85% RH (no frost)

Non-corrosiveness, no flammable gas, no conductive dusr, dust free

Vibration: 10~50 Hz 0.55mm (Max. 4.9m/S²)

Groundingz: D type grounding (Forbid to connect with strong electric wires together)

Weight: Approx. 3.5kg

Price: $320/pc

MOQ: 1pc

Payment term: T/T, Western union

Delivery term: EXW

Validity: 10 days

Lead time: 3-7 days
