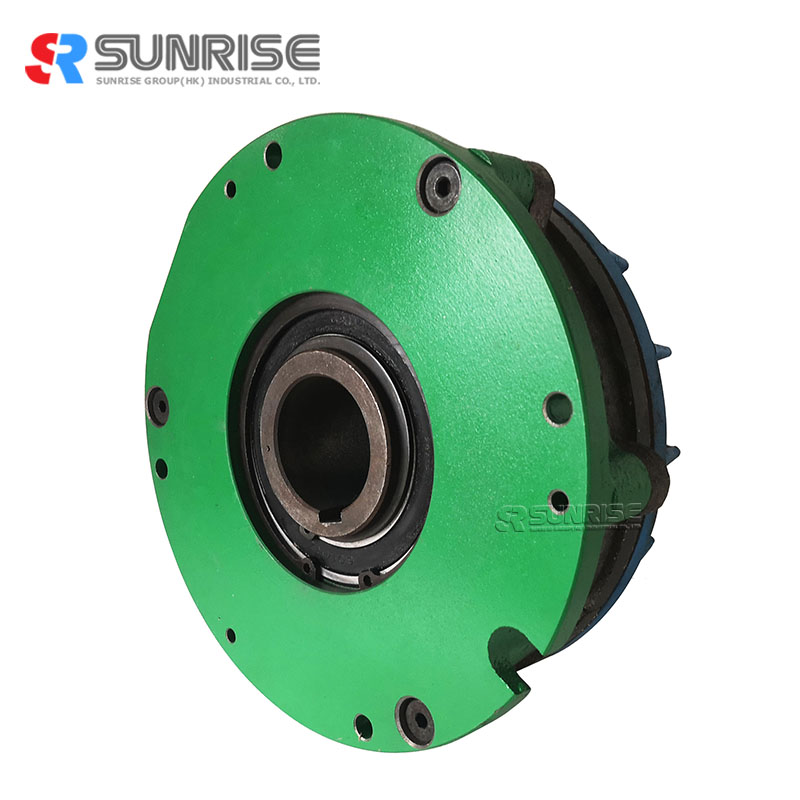

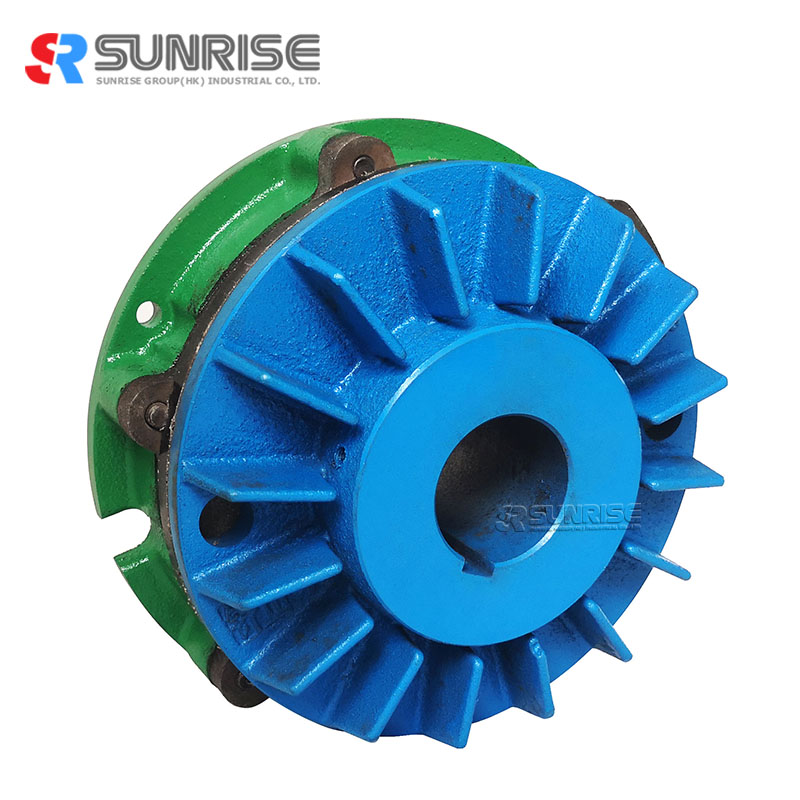

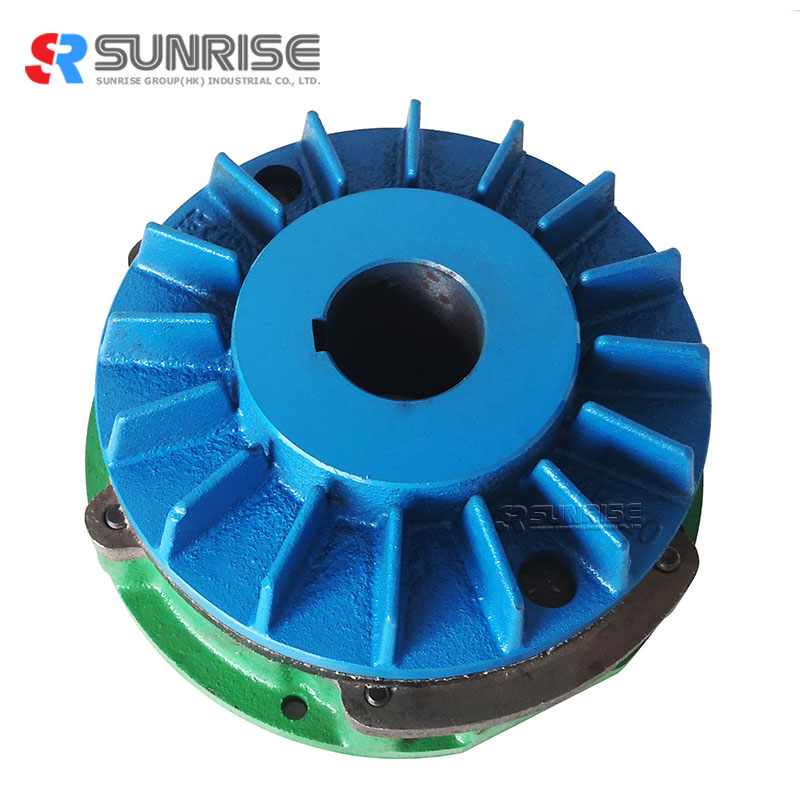

High Quality Slitting Machine Wholesale Air brake NAB series

Air Through Air Clutch and Brake unit NAB series

Clutches, whether pneumatic, mechanical, or hydraulic, work by both locking two separate rotating parts together and unlocking them. This action can bring energy from one source to another, or take that energy away.

Air Through Clutches are very powerful and an excellent fit for the large industrial machines in your company. They offer a simple method for adjusting torque by providing excellent torque control, which is necessary for more heavy-duty vehicles and machines, and they are able to provide more speed and flexibility.

Air Brake advantage:

*Dimensionally smaller units, giving a more compact machine design

*Reduction in price due to smaller design

*Lower top speeds minimized the wear of the linings

*Constant controllable torque from a stable friction lining material

*Suitable for all types of applications

*Suitable for high heat dissipation

Basic Parameter

Function: Pneumatic Disc Clutch Air Disc Clutch NAB series

Brand: Sunrise Group/ None

Item No.: NAB-5, NAB-10, NAB-20 ...

Material: Steel ...

Static Torque [kgf-m] (N-m) at 0.6 Mpa: 5.3(53)~63.6(636)

Air chamber capacity (cm³):

Min Vn: 10.31~34.54; Max Vo: 23.31~193.9

Plate allowed clearance Vf  (cm³): 14.74~299.8

Max rotation speed Nc(r/min): 3600~1600

Weight(kg): 3.5~36
